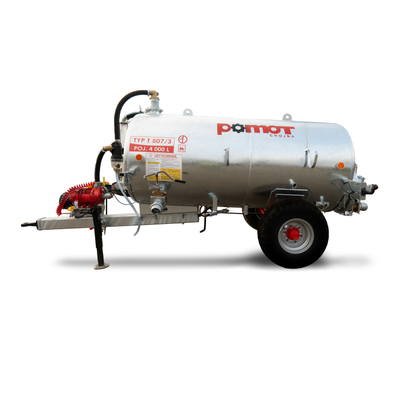

Pomot - Model T507/3 - 4000 Liters Series -Slurry Tanker

Tank

• Double-sided hot-dip galvanized tank
• Tank passivation protecting fresh galvanization against the effects of slurry
• Rear hatch ø500mm (in T507/2), ø700mm (in T507/1, T507/2, T507/6) – hinged hatch cover
• Tubular filling indicator with sight glass
• Discharge nozzle with 1 ½” valve – at the lowest point of the tank
• Sight glass 4” on the rear bottom plate

Chassis construction: self-supporting or frame

• SELF-SUPPORTING – drawbar mounted on reinforced supports under the tank, hot-dip galvanized
• FRAME – tank mounted on a frame made of closed-profile sections
• Replaceable hitch – bolted ø50mm
• Mechanically adjustable support foot
• Single-axle wheelset, two wheels
• Tires according to the table
• Mudguards
• Pneumatic two-line brake system with 4-step brake force adjustment
• Parking handbrake
• Compressor – type according to the table
• Drive shaft 540 rpm or 1000 rpm – optional
• Reinforced temperature-resistant hoses connecting fittings
• Overflow protection via a double-ball valve with sight glass on the top of the tank and siphon with sight glass
• Pressure/vacuum gauge
• Two safety valves: overpressure up to 0.05 MPa and vacuum down to -0.05 MPa
• Oil separator – wet air filter, silencer to reduce compressor noise
• Suction nozzles 4” ø110mm (in T507/6 – 6” ø150mm)
• Main discharge nozzle in the rear hatch cover 4” – with hydraulic 4” gate valve
• Front left and right nozzles – capped, prepared for manual gate valve installation
• Rear nozzle – capped, prepared for manual gate valve installation
• 12V electrical and lighting installation
• Hose 4” (ø110)
• Transport handles for suction hose
• Hose with suction basket – protects against large object suction
• Suction hose length – 6m

Spreading device

• Profiled spreading spoon POMOT 94 pattern, spreading width up to 14m

Homologation certificate

• Allows registration and driving on public roads

Spreading Devices:

• Wide-angle spreader (working width up to 14 m)
• Slurry thrower (working width from 6 to 15 m)
• Mobile device for road watering and crop irrigation – 2.5 m
• Mobile device for road watering and crop irrigation – 4.5 m wide
• PERROT-type spreading shovel (working width up to 12 m)
• Double spreading shovel (working width up to 16 m)
• Soil injection unit made in the trailing hose system with a working width of 3 m by POMOT – mechanically foldable
• Soil injection unit made in the trailing hose system with a working width of 3 m by POMOT – hydraulically foldable
• Plant watering device

Chassis:

• Upper transport hitch (only for frame construction)
• K80 ball hitch
• Hydraulic support leg
• Hydraulic brake
• Wheel chocks, 2 pcs

Filling Systems:

• Additional manual valve 4″
• Additional manual valve 6″
• Quick coupling for manual valve 6″
• Change of fittings from 4″ to 6″
• Suction hose extension 4″, 3 m length
• Suction hose extension 4″, 6 m length
• Suction hose extension 6″, 3 m length
• Suction hose extension 6″, 6 m length
• Additional suction hose 4″, 6 m length
• Additional suction hose 6″, 6 m length
• Injector 4 or 6″ – suction from 10 m depth
• Hydraulic compressor drive

Accessories:

• Metal galvanized hose boxes, 2 pcs
• Scale marking for pipe indicator with stickers
• Fully openable rear bottom
• Upper hatch Ø500 with ladder
• Fitting W52 with 2″ ball valve
• Pneumatic agitator
• Wide-angle power take-off shaft
• Plastic toolbox
• Handwashing dispenser
• Additional painting of galvanized tank (one side)
• Additional painting of galvanized frame
