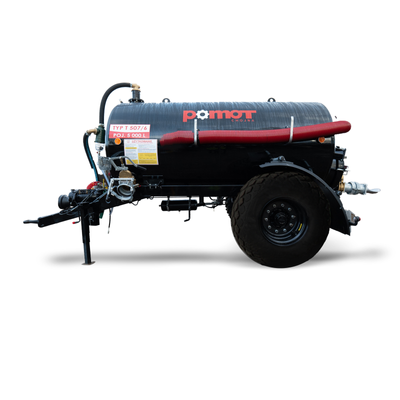

Pomot - Model T507/6 - 5000 Liters Series -Slurry Tanker

Tank

• Tank hot-dip galvanized on both sides
• Tank passivation protecting fresh galvanization from the effects of slurry
• Rear hatch ø500mm (in T507/2), ø700mm (in T507/1, T507/2, T507/6) – hinged hatch cover
• Tubular filling level indicator with sight glass
• Drain nozzle with 1 ½” valve – at the lowest point of the tank
• Sight glass 4” on the rear bottom plate

Vehicle construction: self-supporting or frame-based

• SELF-SUPPORTING – drawbar mounted on reinforced supports under the tank, hot-dip galvanized
• FRAME-BASED – tank mounted on a frame made of closed-section profiles
• Replaceable hitch – screwed ø50mm
• Mechanically adjustable support leg

Wheel set: single axle or two spring-loaded axles

• Tires according to the table
• Mudguards
• Pneumatic dual-circuit brake system with 4-level braking force adjustment
• Parking hand brake
• Compressor – type according to the table
• Drive 540 rpm or 1000 rpm – optional
• Reinforced temperature-resistant hoses connecting the fittings
• Overflow protection via double-ball valve with sight glass on top of the tank and siphon with sight glass
• Manovacuum gauge
• Two safety valves: overpressure up to 0.05 MPa and vacuum up to -0.05 MPa
• Oil separator – wet air filter, muffler reducing compressor noise
• Suction nozzles 4” ø110mm (in T507/6 suction nozzles 6” ø150mm)
• Main drain nozzle in the rear hatch cover 6” – with 4” hydraulic slide valve
• Front left and right nozzles – sealed, prepared for manual slide valve installation
• Rear nozzle – sealed, prepared for manual slide valve installation
• 12V electrical and lighting installation
• Hose 4” (ø110 mm)
• Transport handles for suction hose
• Hose with suction basket – protects against suction of large objects
• Suction hose length – 6 meters

Spreading device:

• Profiled spreading scoop pattern POMOT 94, spreading width up to 14 m

Certificate of approval:

• Enabling registration and movement on public roads

Spreading Devices

• Wide-angle spreader (working width up to 14 m)
• Slurry thrower (working width from 6 to 15 m)
• Portable device for road spraying and crop irrigation 2.5 m
• Portable device for road spraying and crop irrigation with a width of 4.5 m
• PERROT type spreading scoop (working width up to 12 m)
• Double spreading scoop (working width up to 16 m)
• Surface injector aggregate made with trailing hose system, working width 3 m by POMOT – mechanically foldable
• Surface injector aggregate made with trailing hose system, working width 3 m by POMOT – hydraulically foldable
• Plant watering device

Running Gear

• Upper transport hitch (only for frame construction)
• Ball hitch K80
• Hydraulic support leg
• Hydraulic brake
• 2 wheel chocks

Filling Systems

• Additional manual slide valve 4″
• Additional manual slide valve 6″
• Quick coupling for manual slide valve 6″
• Conversion of fittings from 4″ to 6″
• Suction hose extension 4″ length 3 m
• Suction hose extension 4″ length 6 m
• Suction hose extension 6″ length 3 m
• Suction hose extension 6″ length 6 m
• Additional suction hose 4″ length 6 m
• Additional suction hose 6″ length 6 m
• Injector 4″ or 6″ – suction from depth of 10 m
• Hydraulic compressor drive

Accessories

• 2 galvanized metal hose boxes
• Scale markings on tubular indicator with stickers
• Fully openable rear bottom plate
• Upper hatch Ø500 with ladder
• Nozzle W52 with 2″ ball valve
• Pneumatic agitator
• Wide-angle power take-off shaft
• Plastic tool box
• Hand wash dispenser
• Additional painting of galvanized tank (one side)
• Additional painting of galvanized frame
