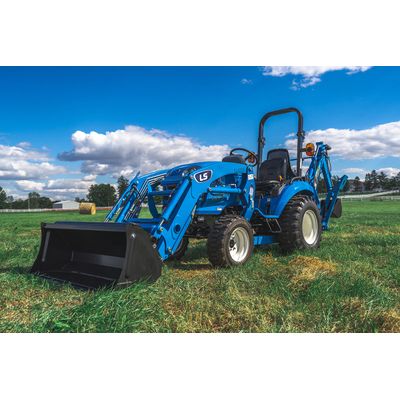

LS - Model XJ2025H -Small Compact Tractors
Loader Lift Capacity: 1,091 lbs. Hitch Lift: 1,433 lbs. Engine Horsepower: 24.4 hp. PTO Horsepower: 18.5 hp. 4WD (Front Wheel Mechanical Assist) – Go from 2WD to a 4WD with a simple move of a lever. Electro Hydraulic Clutch PTO – Turn the PTO on or off with the turn of a switch. PTO Selector Switch – Allows you to select the rear-PTO, mid-PTO or both.
Most popular related searches
Engine
- Type: 3-cylinder, Indirect-injection, Water-cooled
- Model (Tier 4): Mitsubishi S3L2
- Engine HP (Gross: 24.4
- PTO HP: 18.5
- Rated Speed (RPM): 2,500
- Displacement (cu. in): 80.4
- Fuel Tank Capacity (gal): 6.6
- Alternator (V-A): 12V – 50 Amps
Drive Train
- Transmission Type: Hydrostatic Drive
- No. of Speed: 2 Ranges
- Brakes: Wet, Multi-disc
- Steering: Hydrostatic Power Steering
PTO
- Type: Independent
- Mid PTO: Standard (2000 rpm)
- Rear PTO: Standard (540 rpm)
Hydraulic System
- Control System: Manual Position
- Implement pump (gpm): 5.9
- Steering pump (gpm): 2.6
- Total flow (gpm): 8.5
- Category, 3 pt hitch: CAT I
- Hitch Lift capacity, lbs (Hitch end): 1,433
Dimension
- Overall length (with 3pt, in.): 103
- Overall width with tires (in.): 44.9
- Wheelbase (in.): 59
- Height to top of ROPS (in.): 92.3
- Tire Size Industrial Front/Rear: 23 x 8.5 – 12 / 33 x 12 -16.5
- Tire Size Versa Turf Front/Rear:: 23x 8.5 – 12 / 33 x 12.5 – 16.5
Weight
- Total weight without ballast (lbs.): 1,609
- Remote Valve – 1 pair (2 outlets)
- Detent Kit
