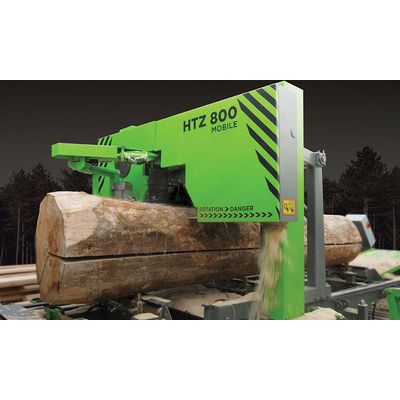

Mebor - Model HTZ 800 -Small / Mobile Horizontal Log Band Saws

• wide blades – for low blade maintenance costs & high precision,
• one man operation with automated board removal,
• strong, but compact for easy transport,
• available in a fully hydraulic or simple mechanical version.

• Productivity: up to 25 m3/8h*
• Max. log diameter: 900 mm
• Max. cutting width: 800 mm
• Max. log length: custom made
• Diameter of flywheels: 820 mm
• Width of flywheels: 80 mm
• Blade length: 5300 mm
• Blade width: 100 - 120 mm
• Blade thickness: 1 mm
• Approximate weight: 2900 - 3800 kg***
• Width: 2330 mm
• Total height (blade in highest position): 2330 mm
• Total length: log length + 3,5m
• Main motor power: 11/15/18,5/22 kW

* depends on log sizes, sawn wood dimensions, machine’s configuration etc.
** blades for two sided cutting are 20 mm wider
*** depends on machine’s configuration
