Stanhay - Model X30 -Small Seed Precision Air Drills

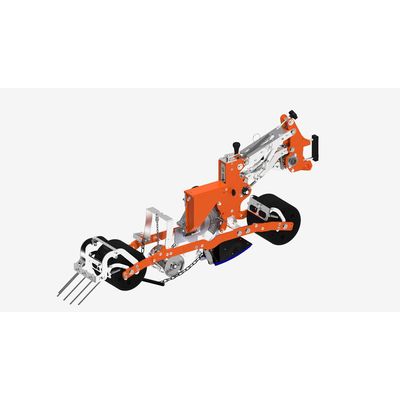

A multiline row unit capable of seeding 1–4 lines of seed from each row. Every aspect of the row is designed for easy and precise adjustment to give uniformity of seed depth and seed soil contact, ensuring regular and even germination in all soil conditions.
Optional rear wheel rake to prevent smooth surface being left behind to reduce chances of capping. Tines can be adjusted in height and angle to suit conditions. Can be easily folded over to be ‘out of work’ or for transport.
A choice of drag, single or double arm coverers with adjustable lower half to set distance between the arm and the line of seed. The working depth of the arm and the downforce of the arm can all be adjusted. The arm can also be latched out of work if not required.
Latest version of the Stanhay metering unit optimised for multi-line line work featuring a ‘knife edge’ seed ejection system. The metering unit can be opened easily without the need for tools.
Choice of hoppers capacities – here shown with a standard 2 litre hopper.
A multiline row unit capable of seeding 1–4 lines of seed from each row. Every aspect of the row is designed for easy and precise adjustment to give uniformity of seed depth and seed soil contact, ensuring regular and even germination in all soil conditions.
The industry leading Stanhay small seed vacuum metering unit has been continually developed and improved over the last 30 years to give unmatched versatility and performance in the field.
- Planter Type: AIR
- Seed Type: NATURAL + PELLETED

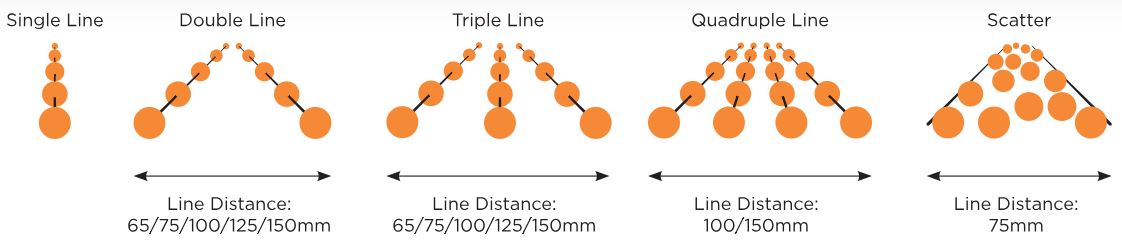

- Multiline Capacity: Upto 4 lines per row
- Hopper Capacity (L): 1/2/6/8
- Min/Max Seed Size (mm): 1-10
- Min/Max Number of Rows per Machine: 2-18+
- Minimum Row Spacing: 250
- Approx Row Unit Weight (kg): 72-85
- Row Unit Length: 1490
- Depth Control Range: 90mm
- Coverer Options: Arm or Drag
- Seed Press Wheels Available: YES
- Row Unit Down Force Adjustment: YES
- Drive System: ELECTRIC MOTOR DRIVE
- Landwheel Tyres: 6.00-16
- PTO Fan: 540RPM or 1000RPM
- Linkage Category: CAT 2/3
- Clutch: Electric
