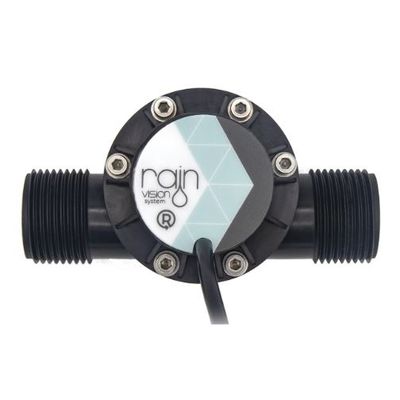

RainModel Turbina Vision - Smart Irrigation Recharging Tool

SHARE

The Turbina Vision is a smart irrigation recharging tool designed to optimize the functioning of modern irrigation systems. It requires an operating pressure range of 1.5 to 6 bar and can handle a flow rate between 10 and 50 liters per minute. This device's primary function is to recharge controllers' batteries during irrigation cycles. It is crucial to consult the performance table for selecting the correct nozzle. The Turbina Vision cannot be used simultaneously with another charging system, such as the Luce solar panel. The lithium batteries within Vision controllers last approximately 400 days under standard programming, with the battery level dropping significantly after 15,000 irrigation cycles without additional recharging. Installation requires attention to the directional arrows on the device. The Turbina Vision provides efficient power management for irrigation controllers, ensuring consistent performance over extended periods.

Most popular related searches
Turbina Vision, using the water flowing through the irrigation system, keeps the lithium batteries of rechargeable Rain devices constantly charged. It is equipped with quick connectors so it can be quickly and effortlessly connected to the controller, directly inside the valve box.
  • Threads available:
    • 1" M
  • Minimum pressure: 1.5
  • Maximum pressure: 6
  • IP68 watertight (submersible)
  • Minimum pressure: 1.5
  • Maximum pressure: 6
  • Maximum generated voltage: 6.8
  • Maximum power generated: 2
  • 4 different nozzles
  • Quick IP68 connection for connecting rechargeable devices

Turbina Vision Operating Pressure

For correct installation of the Turbine Vision device, the system pressure must be between 1.5 and 6 bar.

Turbina Vision Flow Rate

For correct power generation, the system flow rate should be between 10 l/min and 50 l/min. Before installation of the charging device, the performance table should be consulted to choose the appropriate nozzle for the system.
