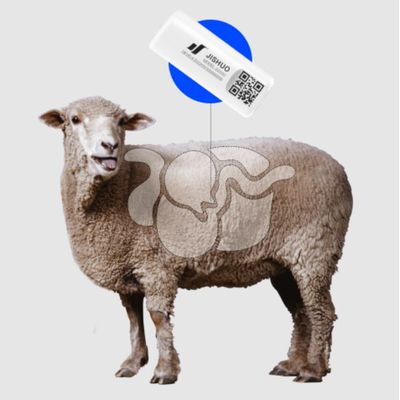

Model JS0050 - Smart Rumen Bolus for Sheep Monitoring
JS0050 is a LoRaWAN compliant rumen bolus designed to capture sheep activity, rumen temperature and movement. The material of the bolus is eco-friendly and causes no harm to the sheep. Once inserted into a sheep by a standard bolus gun, the bolus will remain in the rumen, All data is transmitted automatically first to the LoRa Base Station and then to a cloud-based platform, which allows farmers, vets, and scientists to process the information and deal with unexpected issues anytime, anywhere. The earlier you detect health problems, the earlier you can react and reduce severe courses of diseases on your farm. Allow farmers to maximize the efficiency of farms.
- LoRaWAN Compliant
- Communication range up to 500 Meters
- Battery life up to 2~3 years
- Real time measuring the rumen temperature, movement and activity
- IP68 Rugged Housing,food grade material, compact size 51mm×20..5mm
Modem: LoRaWAN
Frequency: CN470Mhz, EU868 Mhz, US915 Mhz, AS923 Mhz
Tx Power: Type(SF9):16dBm@470MHz;17dBm@868MHz;15dBm@915MHz;15dBm@923MHz
Communication range: About 200 meters LoS (inserted into the rumen)
Temperature accuracy: +/- 0.1°C
Accelerometer: Monitoring the movement/actiity of rumen
Reporting interval: 30mins by defualt, Configurable
Average power consumption: <3.3mW
Battery: 3V 1000mAh
Battery life: 3 years
Casing: IP68
Operation temperature: 21~45°C
Storage Temperature: -40°C~20°C
Dimensions: 51*20.5mm
Weight: 40g
Certification: RoHs Compliant, GB4806.7 standard food grade casing.
Package: 20PCS/Giftbox, 400pcs/CTN
