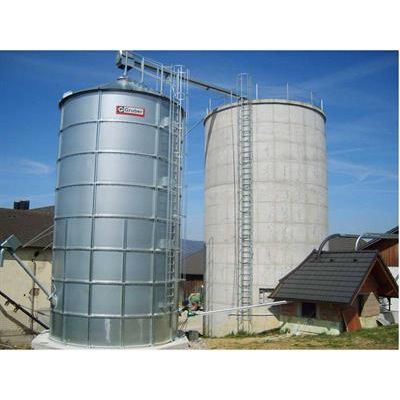

Gruber - Model GWSA -Smooth Wall Outdoor Silos

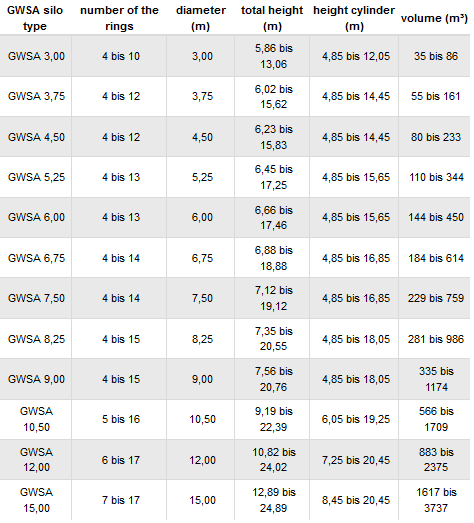

The Gruber smooth-wall outdoor silo offers a high-quality and functional solution for medium to large bins. The silo program ranges from net capacity of 35 m³ to 3737 m³ and diameter 3,0 m to 15,0 m. The silos are equipped with screwed on the outer shell stiffening rings, pillars and silo roof with inlet.
Most popular related searches
The following additional equipment is available:
- entrance door
- inlet for an auger
- ladder
- roof inspection door
- roof ladder
- sweep discharging auger
- under-floor unloading auger
- aeration floor
- installation hopper with or without aeration (up to silo diameter 6,0 m)
The grain bin is designed for outdoor installation and consists of smooth, galvanized steel sheets. A high zinc coating (450 g / m²) and strong silo walls (1,0 mm to 4,0 mm) to ensure maximum stability and thus longest life.
- Easy flowing of the grain and no dust deposit because of smooth (straight) walls guarantee better storage quality. This prevents that conserved or moist grain solidifies in the silo.
