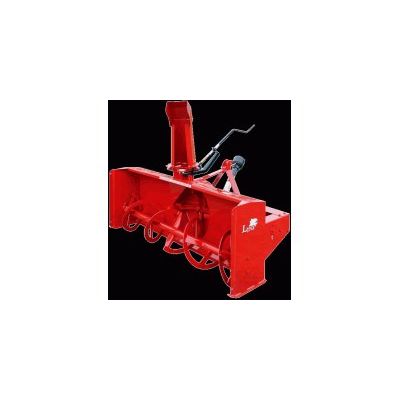

Hardy - Model LYNX-84 LYNX-94 - Snow Blower

ModelLYNX-84LYNX-94Horse power recommended40 to 75 HP80 to 125 HPWorking width84`94`Cutting height34`38`Height - Chute base39`43`Drum diameter28`32`Drum depth11`Impeller blades45Shear bolt1 on the main PTO+ 1 on the augerSize of impeller shaft1 9/16`2`Height - Impeller center18 1/2`21 1/2`Impeller.
