Rolba - Model 500 - Snow Blower

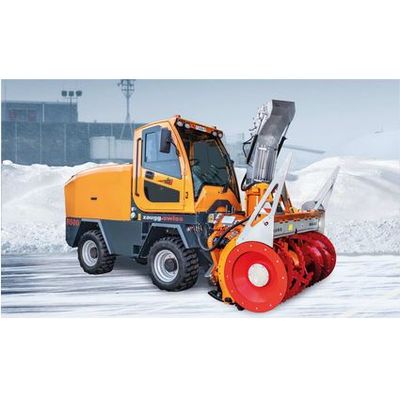

The new Rolba R500 is unique in terms of size and power. There are no comparable self-propelled snow blowers of this type and size on the market. The scope of performance can be exactly adapted to customer requirements. Various clearing widths are available to choose from. Apart from direct ejection, various ejector tube lengths are available and even a telescopic ejector tube. If required, the R500 can be prepared for multiple use. For example, with regard to a boom mower.
The new ZAUGG-Rolba R500 heralds a new dimension in the field of self-propelled snow blowers. Its compact dimensions alone – length 546 cm, width 180 to 210 cm, height 307 cm, wheelbase 200 cm and turning circle 480 cm – bear witness to that. Also the total weight of 8 tons and the 170 kW MTU diesel engine reveal that we can expect quite some power. A state-of-the-art diesel engine complying with the latest specifications regarding exhaust emissions. In addition, noise emissions are very low. Depending on the configuration and snow conditions, a clearing capacity of about 1800 tons per hour and a stepless casting distance of up to 40 metres are achieved.
Rolba R500
with two-stage ZAUGG snow blower
- Clearing capacity 1800 t/h
- Clearing widths 180/200/210 cm
- Clearing height in one pass 130 cm
- Casting distance up to 40 m
- Turning radius approx. 4.8 m
- Clearance speed 0.15–40 km/h
- Engine output 170 kW
- Fuel tank 150 l
- Total weight up to 8000 kg
Rolba R500
with boom mower (further attachments on request)
- Attachment plate type VSS-A/F1
- Maximum output at the PTO stub 75 kW
- Direction of rotation of PTO (shaft viewed from the front on to the stub) Counterclockwise
- Speeds at PTO Shaft 540 rpm @ 1350 rpm Diesel
- 750 rpm @ 1876 rpm Diesel
- PTO shaft profile ZWP 1¾" 6-part acc. to DIN9611
