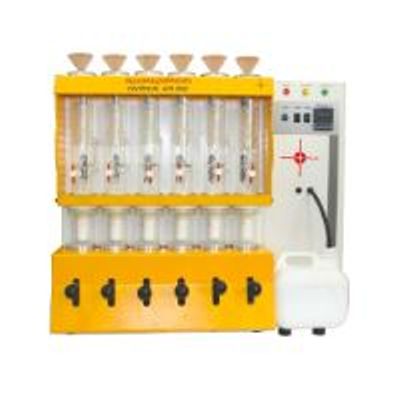

SOCS PLUS - Model SCS 6E -Automatic PC Compatible Solvent/Fat Extraction System with Economic Version
Automatic Programmable Six Place Auto sequencing PC Compatible Economic Version Solvent Extraction System.
Most popular related searches
dairy product
dairy production
milking dairy
oilseed
milk yield
aromatic plant
flower planting
seed oil
cereal seed
dairy milking
- Application: Rapid, economic and safe estimation of soluble material for selective extraction of solid and semi solid products by solvents with Randall technique capable of quantitative separation of total fats from samples like food, feed, egg, meat, meat products, milk, dairy products, confectionary products, soil, polymers, textiles, paper, pulp, aromatic and medicinal plants, flower essence, cereals, pulses, oil seeds, fruits, lipids and other dietary samples.
- Number of Samples: Six Samples at a time
- Casted Aluminium Alloy Heaters for uniform heating, Independent loading of sample with individual mechanical controls,
- Integrated autosequencing time/temperature domain of 2 programs with 8 sequencing steps in each programme,
- Temperature Controller is isolated separately in a control tower to protect electronics from solvent area & heat zone for safe operation, with separate access door for main unit & electronics control tower unit.
- Temperature Range: 35°C (Ambient) to 300°C.
- Temperature Accuracy / Precision : ± 0.5° C
- RS 232 interface for PC/ Laptop Connectivity,
- Measuring Range: 0.1 to 100% fat / oil
- Repeatability: ± 1%
- Speed of extraction: 40 to 60 minutes depending on application
- Solvent Recovery: 90% depending upon the type of sample.
- Sample Size: 0.1 to 15 gms (depending on the type of sample)
- Inbuilt safety features like auto error indication, auto over temperature protection and auto sensor break protection.
- Incorporates inbuilt safety door for extraction Area containing glass parts with auto magnetic door lock.
- Auto Phase change over of 5 stage extraction includes boiling, Condensation, rinsing, solvent recovery and Predrying steps, Digital Display, Auto switch off at end of extraction procedure, Versatile to accommodate 2 sizes of Thimbles.,
- All material in contact with solvents is made of PTFE
- Stainless Steel with Epoxy painted structure to prevent corrosion
- Randall method accepted by AOAC
- Electrical Requirement: 230V/50Hz AC Mains
