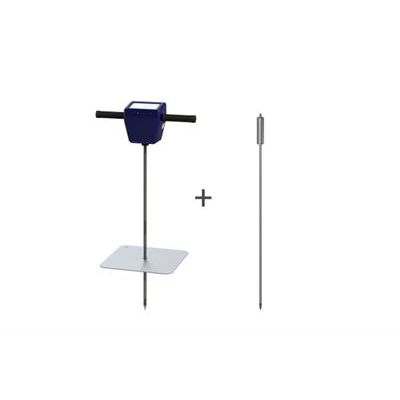

AFS - Model 500 -DSM 600 - Soil Research Logger
DS Logger 500 is a multifunctional device for measuring soil compaction, air temperature, and air humidity. Together with sensor DSM 600, it measures soil temperature, soil moisture, and soil conductivity
Soil Research Logger helps to identify and resolve general soil research to improve crop yields.
- DS Logger 500
- Sensor DSM 600
- Penetration probe
- 2 conical tips (for soil compaction measuring)
- Depth reference plate
- USB charger
DS Logger 500 is a multifunctional device for measuring soil compaction, air temperature, and air humidity. Together with sensor DSM 600, it measures soil temperature, soil moisture, and soil conductivity.
Use the Soil research Logger during the entire vegetation period for making correct and timely decisions concerning irrigation.
All received data are available in Personal AFS Account.
-
Usability. Clear and intuitive device menu will facilitate the working process. The convenient settings menu allows you to select the tip type (for soil compaction measuring) and the appropriate measurement units (all types of measurements).
-
Data for analysis. Maps and graphs of measurements provide not only basic information but also help you better analyze the data obtained during the measurement before you transfer it to the server to your Personal AFS Account. Compare data taken at different periods, but in the same area; monitor the problem points on the map.
-
Control over performance. With DS Logger 500 you can assign different types of tasks to employees at the relevant points and track the correctness of their performance.
-
Automatic data record. With the integrated GPS module, coordinates, time and date of measurements are automatically recorded.
-
Multilingual. The device menu is available in four languages: English, German, Italian and French.
- Device dimensions (WxHxD) 406x170x105 mm | 16x6.7x4.1"
- Case dimensions (WxHxD) 420x475x193 mm | 16.5x18.7x7.6"
- Device weight 1,5 kg | 33.1 lb
- Weight (in case) 6,5 kg | 143.3 lb
- Display 5" resistive touch screen LCD display
- Operating Temperature from +5˚С to +40˚С | from 41˚F to 104˚F
- Load cell Accuracy grade % C2-C5
- GSM Quad-Band 850, 900, 1800, 1900 MHz
- GPS SBAS (WAAS, EGNOS, GAGAN, MSAS), 66 acquisition-channel GPS receiver L1, C/A Code
- Built-in memory up to 5000 measurements
- Built-in temperature and humidity sensor accuracy humidity ±3%;
- temperature: ±0.2°C | 32.4°F
- Battery Life 8000 mAh/ 10500 mAh (on request)
- Charger 5V/2A
- Device housing ABS plastic
- Penetration
- Maximum loading weight 200 kg | 440.9 lb
- Unit sof measure index psi, kPа or kgf/cm²
- Measuring range from 0 to 6000 kPа; from 0 to 870 psi; from 0 to 61 kgf/cm²
- Maximum penetration depth 45 cm | 17.7 "
- Measurement step 2,5 cm | 1"
- Rod, tips Stainless Steel
- Tip types ½ " for solid soil and ¾" for crumbly or sandy
- Sensor DSM 600
- Sensor dimensions DSM 600 850х28 mm | 33.5x1.1"
- Sensor weight 750 g | 1.7 lb
- Sensor material Stainless Steel
- Soil Moisture Measurement
- Maximum loading weight 100 kg | 220.5 lb
- Unit sof measure VWC %
- Measuring range from 0 to saturation
- Accuracy ±3% VWC
- Resolution 0,1% VWC
- Maximum measurement depth 60 cm | 23.6"
- Measurement step 5 cm | 2"
- Soil Electrical Conductivity Measuring
- Maximum loading weight 100 kg | 220.5 lb
- Units of measure μS/cm
- Measuring range from 0 to 7000 μS/cm
- Accuracy ±5% (at 20°С | 68°F)
- Resolution 10 μS/cm
- Maximum measurement depth 60 cm | 23.6"
- Measurement step 5 cm | 2"
