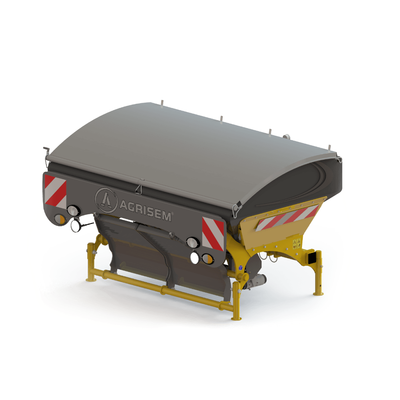

DSF 1600 and 2200 are hoppers with respective capacities of 1600 and 2200 liters compatible with ISOBUS. They can be compartmentalized to allow the addition of fertilizer during sowing. The distributions are made of stainless steel with spline.
Agrisem International S.A.S.
- Home
- Companies
- Agrisem International S.A.S.
- Products
- Agrisem - Model DSF 1600/2200 - Solid ...
Most popular related searches
solid fertilizer
fertilizer
cover cropping
cover crop
GPS receiver
grain size
seed hopper
organic fertilizer
fertilizer hopper
seeding
The double-compartment hopper, a solution adapted to every need. DSF 1600/2200 front hoppers can optionally be partitioned with an independent electric drive for each metering unit.
This allow to distribute 2 products whose quantity, grain size and density are totally different.
THE IMPORTANCE OF LOCALIZED FERTILIZATION
- Optimization of the fertilizer provided by limiting the risk of evaporation or burning of the plant.
- Optimal availability for the plant with the fertilizer dissolved in the soil available to the roots even in dry conditions.
- Possibility of fertilizing only near the plant to ensure better domination against weeds.
- This phenomenon is even more marked in Conservation Agriculture where the organic matter of cover crop can create nitrogen hunger on the surface and in the row which will penalize the emergence of weeds.
- Better plant start-up, increased number of ears and improved yield.
- Possible reduction in the amount of fertilizer added due to the better consumption of the fertilizer.
- Save time by reducing one pass.
- Reduced risk of air pollution (by evaporation) and water in the event of runoff.
PERFORMANCE WITHIN FERTILIZATION
- Stainless steel metering unit as standard with dosing by splines and agitator system allowing the efficient distribution of the main types of fertilizer, whether dusty or not, with a tendency to agglomerate or not, or very light such as corks organic fertilizer.
- Easy loading due to the wide and flared hopper and large opening by rolling up the cover tarpaulin. This allows direct loading with the bucket or with a suitable trailer. Rolled up tarpaulin is safe and does not risk being damaged when approaching the bucket or big-bags.
- Upper hopper grid to effectively prevent any risk of blockage due to blocks or torn piece of bag.
- Possibility of using a front ramp associated with the DSF to place the fertilizer in full with spark gaps or located on the sowing lines with straight descents.
- Dose control system allows the dose to be modulated during use.
DESIGNED FOR EVERYDAY USE
The design of the hopper has been specially studied to offer the best possible visibility due to the plunging shape towards the front.
The size of the DSF is also the most compact on the market while offering a large capacity for more autonomy. The user can also choose the way of the pipes he prefers, to the right of the tractor or between the wheels. At work, the air pressure and hopper level indicators are continuously visible from the operator`s station.
The DSF are also equipped with reflective panels, headlights, position lights and warning lights to ensure safe transport. LED work lights are also available as well as an analog camera.
The use of the front hopper ensures optimum tractor balance without the need for heavy ballasting at the front of the tractor. To improve weight distribution, DSF 1600/2200 can be optionally fitted with the directional front-pack fitted with 4 Ø840x300mm wheels. If necessary, a kit of additional masses (8x35kg) can be added.
The DSF 1600/2200 front hoppers are equipped with 2 stainless steel volumetric metering unit with spline which allow the distribution of the main types of seeds, fertilizers and cover crop. They are equipped with an adjustable spoon system and an agitator to ensure efficient filling and protect the most fragile seeds.
Front ramp kit
THE SOLUTION TO INCREASE THE POSSIBILITIES
- Easy hitching without hoses to connect to the tractor
- No equipment to add on the rear tool
- Possibility of use with different tools
- Excellent visibility on the seed boom
- No risk of clogging by projections of soil
- Optimal flow rate by reducing the length of pipes
- Wiring of pipes with double spark gaps fertilizer / seed
ISOBUS ELECTRONIC MANAGEMENT
- Efficient DPAE flow regulation
- ISOBUS connection
- Regulation of the sowing rate
- Automated calibration test
- Tramline management
- Forward speed measured by GPS receiver (or optional radar)
- Pre-start lunching
- Diagnostic mode
- Management of 2 types of products at the same time
