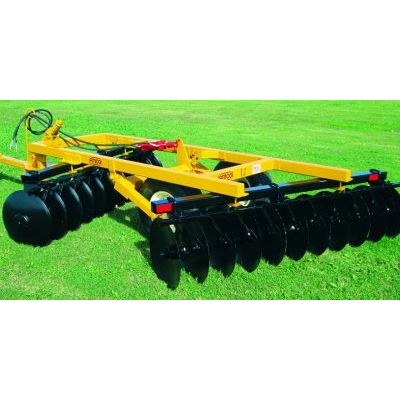

Model C42 - Spacing Wheel Offset Harrow

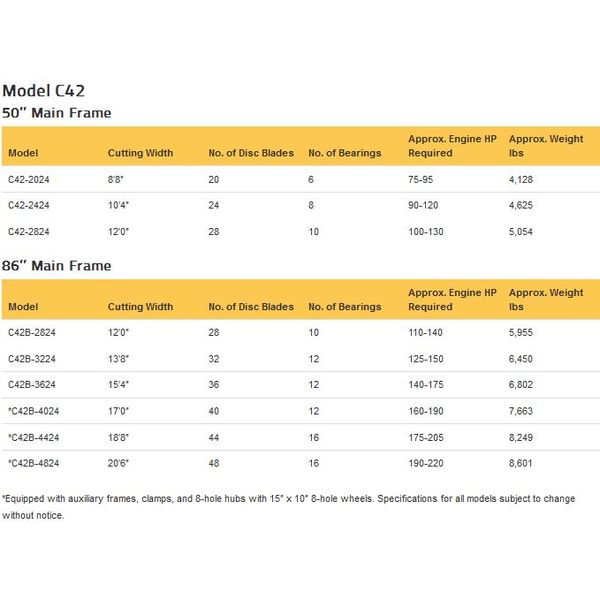

AMCO Wheel Offset Harrow model C42 has 7½” blade spacing and is ideal for heavy-duty primary tillage. The C42 is available in both a 50″ main frame or an 86″ main frame (designated with a “B”). The 3 largest models include upgraded tires and rims as well as auxiliary bars for extra durability.
Most popular related searches
- Helps you prepare the ideal seedbed by cutting and sizing residue, eliminating clumps, and loosening packed soil
- Features Protect-O-Shield® bearings to help eliminate damage from grease gun pressure or residue wrapping
- High-carbon, cold-rolled 1½” steel square axles
- Standard unit comes with 24″ diameter x ¼” thick plain blades with diminishing leveling blades
- Heat-treated spring steel scraper shanks, replaceable high-carbon steel scraper blades, and extra-heavy-duty scraper bars
- Dual wheels for improved flotation
- Heavy-duty 3,000 PSI hydraulic cylinders to adjust cutting depth and raise the disc for transport
- Positive screw-type depth control for maintaining set cutting depth
- Wear guards to protect bearing housings and zerk guards to protect grease fittings
- Adjustable 82″ tongue with base hitch and tongue jack
- Backup blades provide added support for working blades
- Outrigger frame of 16’6″ through 20’6″
- Weights of 164 to 208 pounds per blade
- Safety features include safety chains, slow-moving placard, and light kits
Options: Additional blade diameters and thicknesses.
