PTH Products Maschinenbau GmbH

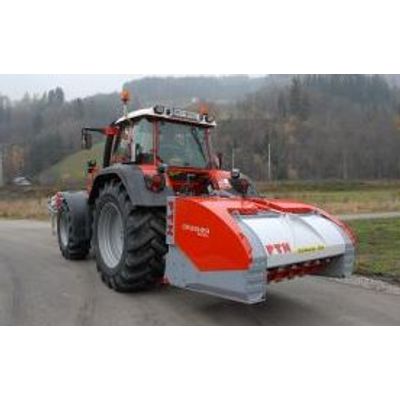

PTH - Model 250 -Special Crusher
The PTH Crusher 250 Special equals the 2500 HD model as far as throughput capacity and working width (2.5 meters) are concerned, but is designed for lighter tractors and less harsh applications.
Most popular related searches
- Construction: Highly robust Crusher in whole-frame construction torsion-free and made of high-grade steels
- Drive: 8 high-performance V-belts on both sides
- Tare weight: 4650kg
- Rotor mass: 1050kg
- Working width: 2500 mm
- Working depth: max. 350 mm
- Power requirement: at least 140 hp
- Theoretical throughput capacity: up to a max. of 600 m³
- 1st crushing stage hydraulically adjustable: 10 - 70 mm, Replaceable internal wear and tear parts with a few simple steps
- Carbide-tipped crusher strips
- Carbide-tipped special tools
- Rotor-armoured for extreme operations
- Second crushing stage on the cover
- Interior cladding of armoured plating 10 + 5 corresponds to 60 mm Hardox
- Lighting
- Built-in tool box
- Rotor front plate, carbide tipped
