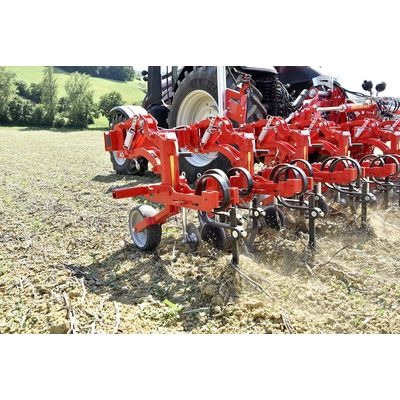

Einböck - Model CHOPSTAR-VERSO - Special Row-Crop Cultivator
The special row-crop cultivator CHOPSTAR-VERSO has a pair of cutting discs and up to 5 vibro tines per hoeing element (of which two angle knives) mounted and can be used in row crops with a row distance of 45 to 80 cm / 17.7" to 31.5" (such as beets, soybeans, field beans, corn, sunflowers, etc.). Through the hollow discs clearing away from the plant as well as adjustable in angle in combination with trailing angle knives can be realised a very small hoeing band. This ensures that young stands can be hoed very early and at the same time narrowly and precisely. Depending on the cultivation conditions and the objective of the hoeing pass, different varities of working tools can be used, e. g. trailed weeder tines, finger weeder stars, roll stars, etc..
- Hoeing of crusted and stressed soils
- Weed control in mulch seeding
- Increased working speeds
- Big flexibility as well as adaption to crop size
- High immersing power by rolling tools
- Very small ,,hoeing belt"
The camera steering system with the sideshift frame ROW-GUARD and the SECTION-CONTROL- parallelogram hydraulic lifting as well as further additional options can again perfected the precision of the CHOPSTAR-VERSO.
- e.g. for beets, soybeans, field beans, rapeseed, corn, sunflowers, sorghum, cereals, ...
- Possible equipment: 1 pair cutting discs und up to 5 sweeps on different positions; of which up to two angle knives
- Possible row distance: 45 to 80 cm / 17.7" to 31.5"
- Trailed elements: trailed weeder tines, rotative weeder elements or finger weeder
- Sweeps and tines: Einböck special vibrotines, ultraflat sweeps, angle knives, heaping sweeps, ...
Concept of row-crop cultivators
The concept of the CHOPSTAR row hoes is its variability and the many possibilities of individual tools for various crops. The same strong and solid frame is used for all row hoes. Almost any row hoe can also be equipped with the automatic camera steering system ROW-GUARD.
To our standard hoeing technology
- Row spacing adjusted between 45 and 60 cm / 17.7" and 23.6"
- Lower links guided on both sides
- Rear mounted machines: autom. top link steering with spindle and high-gauge wheels
- Adjustable retraction support on each parallelogram
- Farmflex-feeler-wheels adjustable by spindles, ball bearing mounted, ø 300 mm/100 mm / 11.81"/3.94" wide
- Robust, adjustable parallelogram
- Vibrotine 40x12 with holder 35x11
- Full hoe element with 3 vibrotines
- Half hoeing element with 2 vibrotines
