PTH - Model G2 - Speed Grader

Professional quality in technology and durability for coupling to:

• Tractors
• Wheel loaders
• Unimog ...

Main frame, blade rotating assembly and blade

The robust front carriage is made of structural steel with excellent fatigue resistance. The latest manufacturing technologies reduced welding seams to a minimum. The blade rotating assembly consists of a dual ball bearing ring for the heaviest loads. Clever construction of the cutting angle adjustment of the shield plate enables settings of "extremely aggressive" to "lightly brush over"

Even inexperienced drivers quickly master the Speed Grader G2.

• Universally and flexibly deployable.
• High-quality standard in all built-up parts
• Multiple usages of carrier vehicles
• Easy one-man installation due to a quick-connect coupling system

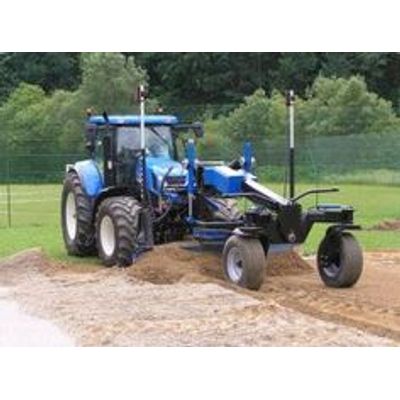

Extremely flexible, highly-modern grader that can be mounted on a variety of carrier vehicles. Feel free to take any available carrier vehicle for your grader! (Tractor, wheel loader, Unimog, truck, excavator...). The mounting can be carried out easily and quickly thanks to a quick-connect coupling system. Your drivers no longer require years of experience. Even inexperienced operators quickly master the PTH Speed Grader G2. Afterwards, the carrier vehicles can immediately be used for other purposes as required.

Versatility

The robust front carriage frame acts as a solid, durable carrier component, guaranteeing a precise guide for the blade rotating assembly and blade.

Precision with load-sensing hydraulics

• Largest view of the work area
• Simple one-hand operation with joystick
• PTHtronic controlled load-sensing hydraulics for precise, delicate work

Controlling
The PTHtronic enables a logic and easy operation of all functions with one hand using a multi-functional joystick. The other hand remains free for steering. This provides advantages in terms of user convenience, speed and security. Operating the joystick is logic, intuitive and robust.

Performance hydraulics and operation
The performance of the PTH Speed Grader depends on the carrier vehicle, but can be compared to a 13 tonne grader or even a stronger one. The hydraulic system is load-sensing and is only fed from the carrier vehicle. A Danfoss control block and the PTHtronic guarantee precise and delicate activation of all the grader`s functions.

Steering
Articulated steering enables bypassing of obstacles or simple retraction in tight spaces. In addition, there is also the option of an "hydraulic auxiliary steering", which is activated on the joystick, if necessary. This helps when the grader needs to push the carrier vehicle to the side to keep to the track. The reach by way of the tyres with articulated steering is right/left 2700 mm.

• Carrier vehicle required  from approx. 5000 kg
• Required capacity  from approx. 100 hp
• Required hydraulic capacity  from about 40 l
• Blade carrier and swivel chair  Ruggedly welded construction in A-form made of high-strength steels in L-profile
• Rotating slewing rim  Double ball-bearing slewing ring
• Slewing ring diameter  1200 mm
• Range of rotation  70 degrees left and right
• Blade  of wear-resistant, high-quality steel with replaceable forked cutting and edging blade
• Blade length  3000mm, 3300mm, 3600mm
• Blade height  580mm
• Cutting blade height/thickness  150/20 mm
• Blade settings
• Shifting to  right/left 600 mm
• Max. slope angle  right/left 60 degrees
• max. lift above ground  550 mm
• Max. scraping depth  300 mm
• Cutting-angle adjustment  Hydraulic 45 degrees
• Hydraulics  Load-sensing hydraulic control block with PTHtronic for precise and easy control of the blade By simply replacing a valve one can also work without Load-Sensing.
• Frame  Torsionally-stiff pressed and welded profile tube made of high-tensile fine-grain steel.
• Electric system  12 V or 24 V system, depending on the carrier vehicle, integrated lighting.
• Front axle  Pendulum axle with freely rotating wheels.
• Steering  Freely rotating wheels; if requested, with forced steering from the cabin
• Articulated steering  Articulated steering integrated in the mounting / attachable frame, with right / left 52 degree steering angle
• Blade control  Single lever control (joystick control) with sensitive load-sensing hydraulics and PTHtronic for an exact metering of the adjustable speed via the control lever
• Tare weight:  4.500kg

• LED work lights
• Hydraulic quick coupling system
• Hydraulic steering assistance
• Blade-wear protection laterally (only possible with new order)
• Front shield plate
• Preparation for laser automatic
• Automatic shield transverse inclination
• Blade chisel rail
