Charlie - Model CH-600-A Series - Spray ...

Charlie - Model CH-600-A Series -Spray Pumps

FromCharlie Sprayers

SHARE

Product Details: Pump Type Tractor mounted. Power Source Hydraulic.

Most popular related searches

tractor sprayer

mounted sprayer

tractor hydraulic

Tank Capacity : 600 Liter

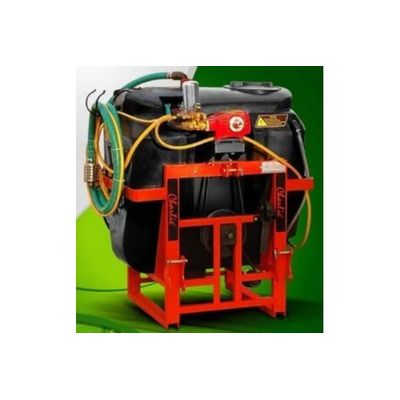

Sprayer Unit : Charlie Tractor Mounted Gun jet Sprayer (Charlie Gunjet CH-600-A)
Working Pressure : Ideally 35-40 bars
Pressure Adjustment : 1-50 bars
RPM : PTO rpm 540
Pump Discharge Rate : 65-80 @ 950 RPM
HP Required : 35 HP Tractor
Hose Size : 8.5 or 10 MM
Hose Pipe : Working Pressure 40 bars and bursting Pressure 120 bars
Spray Gun :

1-Flow rate 1 liter to 53 liters max. at 1 to 55 bars ,drip free shut off
2- Max .horizontal throw 45 feet and vertical throw 38 feet

Auto filler : 120 LPM discharge , 50mm hose(length 16 feet)
Eductor Nozzle : Size ¾” NPT inlet 5x mixer
Total Weight Of Unit : 200 kg approximately
