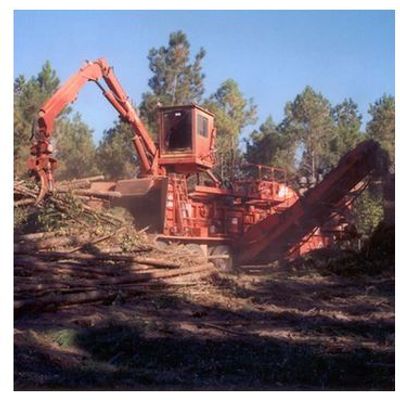

Chiparvestor - Model 2355 -Spreader Infeed Flail System
With a unique spreader infeed system to separate multiple stems, ultrasonically tested plate steel chipper disc, and hydrostatic controls, the 2355 Flail Chiparvestor is fully loaded and ready for action. With a 23" (58.42 cm) diameter chipping capacity and lift capacity of 17,200 lb (7,800 kg) at 10` (3.05 m), this machine produces high-quality chips even in non-merchantable and juvenile timber. Customizable options include remote control, discharge spout extension and more. The cab offers the operator a six-way adjustable seat, joystick controls, combination air conditioner/heater and emergency shut‑down system, making operating the 2355 safe and comfortable.
Flail drive is a closed-loop hydraulic design with separate hydraulic systems to operate each flail drum. Each system is complete with electric tach and controls in operator’s cab
- Length 54’3″, 16.54 m
- Height 13’8″, 4.16 m
- Width 11’11”, 3.63 m
- Gross Width 115,200 lb, 52,253 kg
- Engine CAT
- Horsepower 1200 HP, 895 kW
- Tri-axle trailer 75,000 lb suspension, 34,019 kg
- Drive (flail) hydraulic
- Drive (chipper) belt
- Fuel capacity (tank) 500 gallons, 1,892 litres
- Hydraulic oil capacity 426 gallons, 1,612 litres
