Mauguin Citagri - Spreading Booms / Nozzles
Spreading ramps: The tribuse boom allows spreading over a width of 18/21/24 meters. The power is supplied by two Ø 120 galvanized steel tubes. The multi-jet boom allows very regular spreading. All ramps are fitted with 2 spherical diffusers as well as an anti-drip system. The alternation between a long jet and a short jet avoids the crossing of flows. Equipped with a jet every 1.50 meters, it is available in 12/15/18/24 meters and the 24 meter model is equipped with a slope corrector as standard.

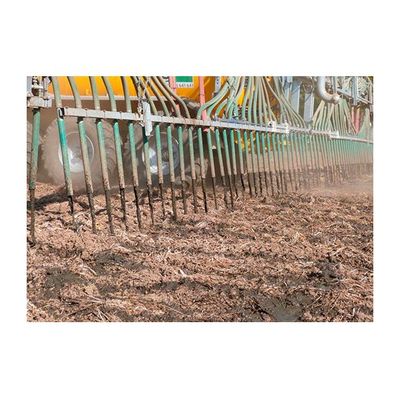

The hanger boom is the most modern way to provide organic fertilizer on cereals or pastures with the least possible nuisance. The product is distributed uniformly using one or two distribution choppers.
- 12 meters - 1 Vogelsang chopper - 40 Ø 40 outputs
- 15 meters - 1 Vogelsang chopper - 48 Ø 40 outputs
- 18 meters - 2 Vogelsang choppers - 60 Ø 40 outlets
- 24 meters - 2 Vogelsang choppers - 80 Ø 40 outlets
- 28 meters - 2 Vogelsang choppers - 96 Ø 40 outlets
Numerous options can be added to the hanger ramp:
- The slope corrector.
- The cutting of electro-pneumatic sections.
- The rear cut-off of the wheel arches.
- The skid ramp: manufactured by Bomech, it is a derivative of the hanger ramp and allows effluent to be deposited in a slight groove dug as close as possible to the plant. It is available in 12 and 15 meters with 2 Vogelsang choppers.
- The spreading cannon: The Garda group allows spreading or watering on inaccessible plots, in particular on very steep slopes.
Nozzles
Different models of nozzles are adapted according to the different uses of the ton.
- Ground-level nozzle
- Low diaphragm floor nozzle
- Precision nozzle
- Cleaning nozzle
- Double nozzle
- Tribuse
