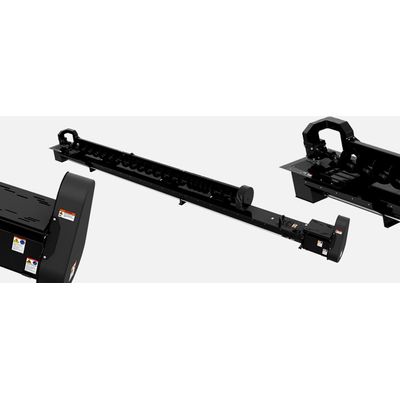

Model Easyflow2 - Standard Output U-Trough Unload System
AGI`s Standard Output U-Trough Unload System has been reinforced with welded flanges and provides a strong, modular design. A heavy-duty motor mount on the powerhead can accommodate motor sizes from 5 HP to 20 HP. The system`s main components are pre-assembled at the factory, allowing for easy field installation.
Center sump, gates and controls
Nylatron gate slide provides a low friction surface for easy opening and closing, and an improved gate seal over traditional rollers making the system ideal for small grains
All controls are internal to the U-Trough to allow for easy sealing and installation between the bin wall
Clump buster (optional)
Breaks up clumps and prevents them from blocking the center sump, allowing for continuous grain flow
Auxiliary sump
Standard auxiliary, with independent controls, positioned near the center sump to allow for use in emergencies, enabling the bin to be emptied if the center sump becomes blocked
Different sizes available
Available for bin sizes from 42` to 60` in diameter only
- Different size options: Available for bin sizes from 21` to 60` in diameter
- High capacity: 5,000 to 7,500 BPH
- Improved functionality: 11" U-Trough complete with center and intermediate sumps and gates
- Durable Gearbox: 1.5:1 double center gearbox with common, solid shaft
- Wide Flighting: 9" diameter, removable U-Trough flight, 7" diameter sweep flight
- Designed to perfection: Molded sweep end wheel with 14.8:1 reduction gearbox
- Additional Specs: Electric horizontal powerhead, Powder coat finish
- Options: Electric incline powerhead, Hydraulic horizontal powerhead, U-Trough extension kits (3`, 4.5`, 5`, 6` & 9`), Clump buster
