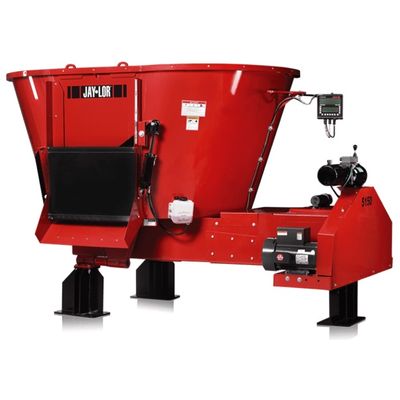

Jaylor - Model 5150 - Stationary for Vertical Mini Total Mix Ration (TMR) Mixers

FromJaylor International

SHARE

The 5150 is idea for both new builds and retrofitting a TMR mixer into a legacy feed room, on your farm. Suitable to feed up to 30 head of dairy cattle, 38 beef cows, or 150 adult sheep/goats per load per day, depending on ration composition. Scale system upgrades available with the full range of feed management system, recipes, remote control and automatic upload over Cellular Data.

Most popular related searches

vertical TMR mixer

total mix ration

agriculture feed

Patented Square Cut Auger
Two Single Phase Electric Motors
Planetary Gearbox Open Loop Lubrication System
Mix Viewing Window
Welded Mixing Chamber
Mounting Feet
Auxiliary Hydraulic Pump

Plastic Extension
STAD 04 PLUS² Indicator Upgrade
WIN SCALE² Indicator Upgrade
TOP SCALE IC Indicator Upgrade
Cab Remote Display
Weight Repeater Remote Display
Alphanumeric Remote Display
Dina-Tel 2 for Full display
Wi-Net Modem
P2P Major Functions Remote
Software For Mixer & Feeding Management

Sloped top Square-Cut Auger
Two 10HP Single Phase Motors 230VAC
Motor Platform, Belts and Pulleys
Planetary Gearbox
Mix Viewing Window
Tungsten Carbide Coated Knives
Central Grease Bank
4-Point Weigh System with DG500 Indicator
Low Loading Height
Included 120VAC Hydraulic Power Pack for Door

Capacity No Extension: 155ft³ | 4.4m³
Capacity 12" Extension: 200ft³ | 5.7m³
Weight: 4300lbs | 1950kg
Height: 86in | 2.2m*
Length: 140in | 3.6m
Drum Width: 76.5in | 1.9m
Minimum Hp: (2) 1-Phase 10 HP
Auger Speed: 35 RPM
Number of Knives: 8
Auger Flighting Thickness: 1/2in | 13mm
Max Discharge Height: 35in | 88.9cm
Door Opening Width: 25in | 63.5cm
Floor Thickness: 1/2in | 13mm
Drum Wall Thickness: 1/4in | 6mm
Scale System: DG 500
