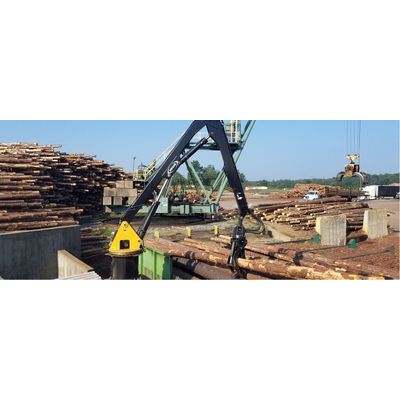

Weiler - Model K161 -Stationary Knuckleboom Loader
The optional right side mounted cab features a large, fully adjustable suspension seat with lumbar support, fold-up armrests with the choice of front mounted or joystick lever controls, and a rocker swing pedal for ease of operation.
The on board electric power supply and hydraulics allow for continuous or non-continuous rotation. This configuration also provides a space saving installation as all components are mounted on the loader with only the electrical harnesses routed up the mounting structure.
Remote electric power supply and hydraulics are placed on the ground for easier service access to the electric motor, hydraulic pumps and hydraulic valve. Hydraulic hoses are routed up the mounting structure through the center of the loader. Available in limited rotation only.
Loaders with optional remote controls are designed with electric over hydraulic (EHC) joysticks with proportional controllers that enable the loader to be operated from a remote location. Specially designed multi-conductor cables ensure reliable signal continuity.
The Resilient Pad Mounting System includes a set of special rubber isolators on each mounting fastener that absorbs stress in two directions. An additional hydraulic accumulator is built into the main boom cylinder circuit to further absorb peak-load shocks.
Heavy-duty boom options range from 25’ (7.6 m) to 29’ (8.8 m) for handling short wood as well as fixed heel options for handling tree length stems. A solid waste boom option with a power wrist grapple is designed specifically for handling multiple types of trash and waste.
- Gross Power: 60 hp 45 kW
- Electric Motor Options: 380 Volt / 50 Hz, 460 Volt / 60 Hz
- Weight*: 10,610 lb 4813 kg
- System Pressure: 2500 psi 172 bar
- Swing Pressure: 2700 psi 186 bar
- Swing Speed: 7 rpm
- Swing Bearing Diameter (O.D.): 38” 965 mm
- Hydraulic Reservoir: 77 gal 290 L
- *Weight includes on board electric power, operator’s cab, 25’ boom, V heel, and 4042SN R25 grapple:
