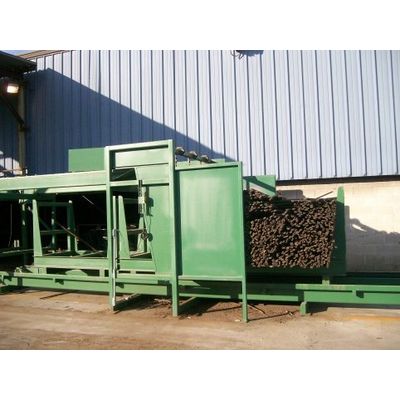

BAXLEY - Stick/Crossout Recovery

Stick Transfer Chains

• Two (2) Lines 81X chain, approximately 6’ long
• Configured for broken stick dropout to hopper
• Broken stick hopper
• Two (2) Lines 81X chain, approximately 16’ long
• 5 HP AC drive with fixed speed
• Air-operated stick straightener at tail
• Sidewalls at stick drop area
• All necessary field devices

Cart Chains

• Two (2) Lines 81X chain, approximately 28’ long
• 5 HP AC reversing drive for fixed speed operation
• Incremental advance operation
• All necessary field devices

Stick Carts

• Structural steel stick carts

Stick Cart Feed System

• Two (2) Lines 81X approximately 20’ long with gravity rolls and pivot
• All necessary field devices

Crossout Hopper/Unscrambler

• Three (3) Lines 81X chain with bar lug attachments approximately 8’ tall
• Driven from crossout transfer chains
• Plated hopper, incline and sidewalls
• Support to ground

Crossout Transfer Chains

• Two (2) Lines 81X chain approximately 4’ long
• 5 HP AC drive with fixed speed
• Two (2) Sling letdown for crossouts
• 5 HP worm gear let down with brake motor
• Designed for cross out to lower into cross out hopper
• Crossout Hopper
