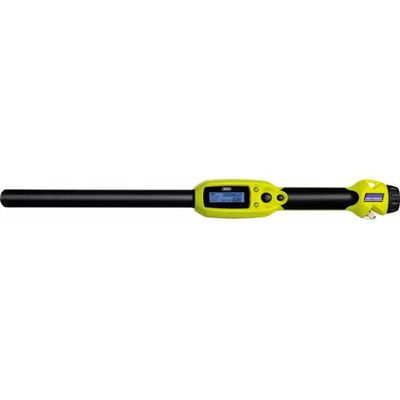

Tru Test - Model XRS - Stick Reader for Livestock Management

• Reads all HDX and FDX-B tags
• 20,000 scanned tag memory
• 20,000 EID/VID pairs
• 50 sessions
• Vibrating handle alert on tag read
• Loud beeper and bright LED alerts
• Duplicate tag ignore option
• Daylight viewable backlit display – flips for left and right hand
• Bluetooth® wireless connection (up to 100 m) with automatic pairing
• Customisable alerts for pre-chosen animals
• Custom data entry against individual animals
• IP67 – Water and dust proof
• Long life battery – 9.5 hours continuous reading; 19 hours push to read.

Operating indicators

• Visual: 1 LED (red/green/orange)
• Non-visual: Buzzer

Operating keys

• Entry options: 1 scan key

Communication

• RS232: DB9 PTF connector with external power supply
• Keyboard Wedge: MiniDIN6 F/M connector
• USB: Ver. 1.1, HID/VCP, USB-A connector Power
• Voltage requirement: 5V ± 10% (Keyboard Wedge and USB), 6V (min. 4.5, max. 6.6V) (RS232)

Barcode scanner Optics

• Light source: 630 nm red LED
• Scan method: CCD linear Sensor 2500 Pixels
• Scan rate: 200 scans/sec
• Trigger mode: Manual, auto-trigger
• Reading pitch angle: -30 to 0°, 0 to +30°
• Reading skew angle: -70 to -20°, 20 to +70°
• Reading tilt angle: -25 to 0°, 0 to +25°
• Curvature: R>15 mm (EAN8), R>20 mm (EAN13)
• Min. resolution at PCS 0.9: 0.125 mm / 5 mil
• Depth of field: At PCS 0.9, Code 39 0 – 15 mm / 0 – 0.59 in

Supported Symbologies

• Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5,
• Interleaved 2of5, ISBN-ISSM-ISSN, Matrix 2of5, MSI/ Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey

Durability

• Temperature in operation: 0 to 50 °C / 32 to 122 °F
• Temperature in storage: -20 to 60 °C / -14 to 140 °F
• Humidity in operation: 5 – 95% (non-condensing)
• Humidity in storage: 5 – 95% (non-condensing)
• Ambient light immunity: Fluoresecent 10,000 lx max, Incandescent 10,000 lx max
• Drop test: 1.5 m / 5 ft drop onto concrete surface
• Vibration test: 10 – 100 Hz with 2G for 1 hour
• Protection rate: IP 42 Physical
• Dimensions (w x h x d): 75 x 150 x 53 mm / 2.95 x 5.91 x 2.09 in
• Weight body: Ca. 90 g / 3.2 oz (excl. cable)
• Case: ABS, Black, White

Regulatory & Safety

• Product compliance: CE, FCC, VCCI, RoHS

Enclosed items

• Power supply 100-240V/0.5A, 50/60 Hz, 6V/2A (for RS232)

Models

• Interface versions: RS232, Keyboard Wedge, USB
• Color versions: Black, White
