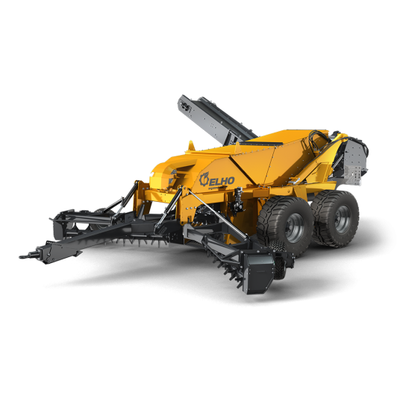

Elho - Model Scorpio 550 SF - Stone Picker

The centre conveyor has a very sturdy structure and lifts stones from the ground. The kinetic energy of the stones is dissipated before arriving at the side conveyor, which has a lighter structure and is equipped with spring steel rods and a rubber mat. Both conveyors effectively sieve dirt off the stones.

The conveyors can be stopped temporarily, for example in the headland, to avoid an obstacle or when switching trailers. The rake tines continue to collect stones all the time, which are then lifted onto the conveyor when it is reactivated.

The Scorpio 550 SF stone picker is controlled electronically, as on the Scorpio 710 model. The Scorpio 550 SF is ideal for large field areas where it would be inefficient for the pulling tractor to unload the hopper by itself.

• Hydraulic unit

• Towing eye K80

1. Trailers up to 2,7 m fits under the conveyor in all situations
2. The side conveyor transports the stones directly to the trailer
3. Isobus- control
4. Automatic reversal of the feed rotor and windrowers
5. Stepless adjustment of the rotation speed pf the windrowers and the feed rotor
6. Large windrowers wheels that turn with the machine and are easy to replace
7. Telescopic drawbar with collision protection
8. Large 560/60 R22,5 bogie wheels
