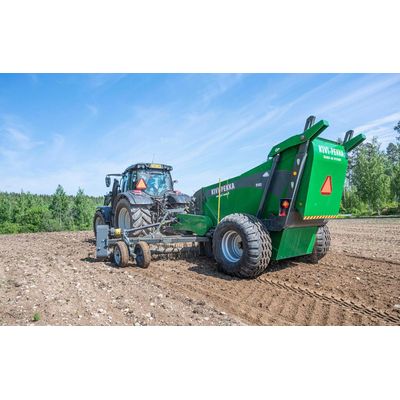

PEL Tuote - Model Kivi-Pekka 5 -Stone Picker
FromPEL-Tuote Oy
Long-time favourite. Unrivalled efficiency. Designed for extremely challenging conditions.
Most popular related searches
- Weight 5300 kg (11700 lbs)
- Working width 500 cm (16,5 ft)
- Stone size 2.5–35 cm (1-13,7 in) (with Flex Drum 50 cm (20 in))
- Output 1000 kg/min (2 200 lbs/min)
- Stone hopper capacity 3 m³ (106ft³ )
- Tyre size 560/60×22.5
- Power requirement 80 hp
- Hydraulics 20 l oil/min (5.3 gal/min)
- Running speed 1–6 km/h (0,6–3,7 mph)
- Lifting drum tines 28 pcs
- Tipping height 290 cm (9′ 6?″)*
*with a trailer’s maximum height of 2700 mm with a stone guard (700/50×26.5 tires). Stones can also be tipped into high dump trucks, making the reuse of stones in other locations easier.
Standard accessories
- Hydraulic rotor lift
- Soil container
- Trailer coupling
- Tyres 560/60×22.5
- All PTO shafts
- Hydraulic working depth adjustment
- Sieve (in cultivation direction)
- Walking tandems on rakes
- Tool and spare parts box
- Tipping height 290 cm (9′ 6?″)*
- Straight belts for lifting drum transmission
- Robust rake pivots
- Strong tines 12×45 (0,47″x1,77″)
– Configuration may differ to conform to local codes. Lights, reflectors, drawbar and brake system can vary by country.
Optional accessories
- ISOBUS control
- Flex Drum with extra-strong tines 13×50 (1/2″x2″)
- Rotation guard
- Pneumatic brakes
- 1-circuit hydraulic brakes
- Ball coupling
- Working level indicator
- Tyre options
- 710/45×22.5
- 700/50R26.5
- bogie 500/50×17
- bogie 500/50×20
with a trailer’s maximum height of 2700 mm with a stone guard (700/50×26.5 tires). Stones can also be tipped into high dump trucks, making the reuse of stones in other locations easier.
