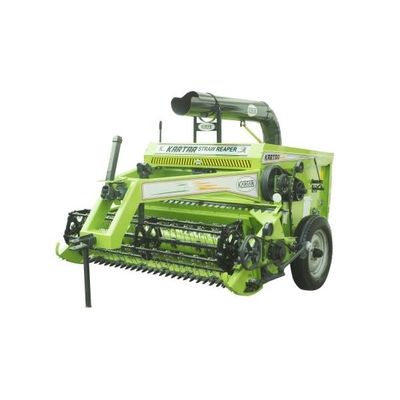

Kartar - Straw Reaper

FromKartar Agro Industries Private Limited

SHARE

KARTAR Straw Reaper offered provides functioning as a threshing machine where it runs the function of cutting, threshing as well as cleaning the straw in one operation. Here, the wheat stalks which are left after combine harvest are cut using oscillating blades while the revolving reel helps in pushing them back toward auger. He process involves stalks being conveyed back into machine through auger & guide drum where it reaches threshing cylinder that cuts the stalks into small pieces against concave.

Most popular related searches

harvesting combine

threshing machine

harvesting system

wheat harvesting combine

System designed to provide superior separating performance
Double blower operating behind rushes straw to trolley and at dame time also separates the dust particles
Fully belt operated machine
Coming with adjustable cutting height

Chassis: 56â€
Wheel: 7-00-19
No. of Blower: 2
Weight: 2150 Kg (Approx)
Cutting Capacity: 2-3 Acres/Hr.
Effective Cutting Width: 2100 mm

Overall Dimension (Working)

Length: 3676 mm
Width: 2470 mm
Height: 2100 mm

Low fuel.
High performance.
Straw Reaper is a chopper machine which cuts, Threshes & clean the straw in one operation. The wheat stalks left after combine harvest are cut by an oscillating blades while revolving reel pushes them back toward and auger. The stalks are conveyed into the machine by the auger and guide drum, which reaches the threshing cylinder which cut the stalks into small pieces against concave.
It give superior separating performance. The short fragment (straw) fall through the bars of the concave. Double blower operating just behind rushes the straw to trolley attached and separate the dust particles.

Brand: Kartar
No of Blower: 2
Effective Cutting Width: 2100 mm
Working Length: 3676 mm
Working Height: 2100 mm
Weight: 2150 Kg (Approx)
Cutting Capacity: 2-3 Acres/Hr
Working Width: 2470 mm
