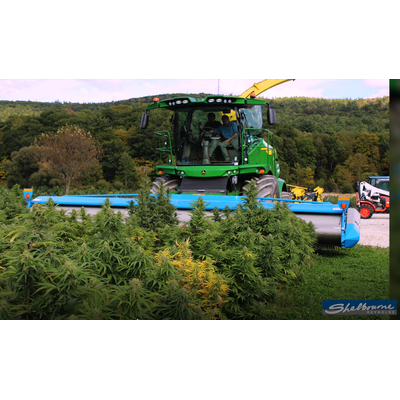

Shelbourne - Model HEMP - Stripper Headers
Shelbourne stripper headers have been used globally for harvesting hemp leaves, flowers & buds for a number of years. The action of the stripping rotor combs through the fibrous stalk removing the seeds, buds & leaves with little damage to the fragile crop and therefore maximizing the CBD oil content available. A Traditional combine would not be suitable for harvesting hemp for oil production without considerable modification because of the fibrous nature of the crop where it has a tendency to wrap on exposed shafts etc. Also the harvested crop is delicate once harvested and the oil content will be effected by excessive handling. A Forage harvester has been a successful method to both power the header and transfer the harvested crop into trailers. However the size of the header is restricted by the lift capacity and limited lifting height of the harvester.
An alternative method is to mount the header onto a tractor front end loader and operate the header hydraulically. Again the header size needs to be matched to the tractor along with the hydraulic flow rate. Customers have then fabricated a discharge conveyors to carry the harvested material to a trailer.
The CVS models utilize the proven variable speed belt drive system, rotor speed is adjusted with an electric actuator on the drive pulley in conjunction with a posi-torque spring tension system fitted to the front pulley.
The in cab monitor allows the operator to adjust the speed of the stripping rotor by controlling an electric actuator that adjusts the drive pulley. The speed of the rotor and the auger are displayed and includes an alarm system to aid the operator.
- Heavy duty self tensioning variable speed belt
- 3 ramp posi-torque cam with high capacity spring
- Hydraulically actuated speed adjustment
- 3 variable speed ranges **
- 430-580rpm
- 500-690rpm
- 660-790rpm
- fixed low maintenance rear pulley
