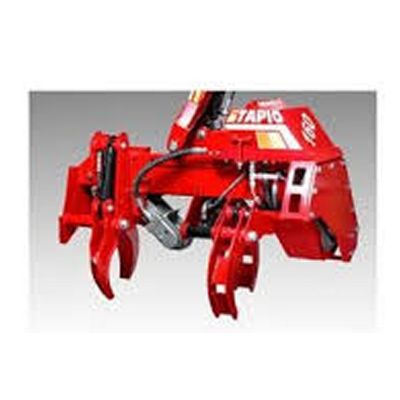

Tapio - Model 160 - Stroke Harvesting Head
FromRiuttolehto Oy
The following standard equipment are included in the delivery of Tapio 160 harvesting head: Siemens Minilogo control system, Siemens Logo TD display, Logo TD display rack, 2 push button boxes, ready-connected to Siemens Minilogo, Push button box holder 2 pcs, 17x0,75 boom cable from Siemens MiniLogo unit to harvesting head, Connectors to boom cable 2+2 pcs, Covers to connectors 1+1 pcs, Saw blade .404`-1.6 12` 1+3 pcs, Saw chain .404`-1.6 48 1+3 pcs, Siemens MiniLogo instructions, Tapio 160 manual.
Most popular related searches
stroke harvester head
harvester head
stroke harvester
harvesting system
agriculture tractor
chain saw
tractor harvesting system
tractor
delimb
delimber
Additional equipment:
- Length measuring wheel
- Guillotine knife cutting
- Installation supervision
Basic machine options:
- Agricultural tractors
- Small forwarders
- Small harvester units
- Excavators of 3-6 tons
- Length x width x height: 1030 x 550 x 630 mm
- Weight: 215 kg
- Electric system: 12/24 Vdc
- Saw blade: 12" 1.6 mm
- Saw chain: 404" 1.6 mm
- Pump/pressure 1500r/min: 40-60 l/min 160 bar
- Stroke length: 500 mm
- Stroke speed: 0.75 m / sec
- Stroke power: 12.86 kN
- Maximum cutting diameter: 250 mm
- Maximum delimbing diameter: 200 mm
- Harvester output: 15 kW
