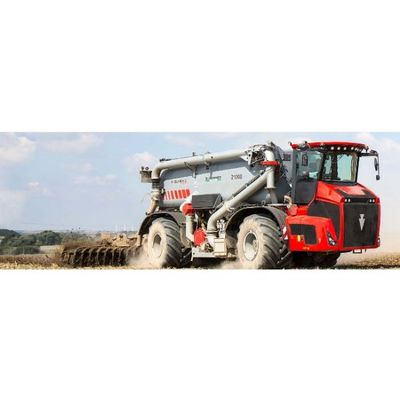

HOLMER Terra Variant - Model 585 - Strongest Carrier Tractor
The strongest carrier tractor in the world, the Terra Variant 585 is ready for emission standard Tier 4 final with the new Mercedes Benz OM 473 diesel engine LA with 585 HP / 430 kW. The weight of vehicle was further reduced by the systematic and intelligent HOLMER lightweight construction – for an unbeatable, soil protecting weight to power ratio.
The dynamic design makes the Terra Variant 585 unique – edged, manly, powerful. The driver has the perfect all-round view because of the bonnet with frontal slope, the sideward suction pipe and the integrated exhaust silencer – for even more safety on field and street.
The new slurry structure has an even more advanced slurry technology with an optimized and partially inside conduit. The slurry flow is therefore absolutely efficient – for even shorter pumping and suction processes as well as an optimum lifetime of the pump.
Use power where it is needed:
- Straight-line drive train with maintenance-free drive shafts – for direct power transmission
- Large-size braking system – for your safety
- Pneumatic braking system (optional) – for towed attachments
- Central lubrication – for all important lubrication points
- Lubrication intervals adjustable – for individual applications
- Maximum speed 40 km/h in road driving – for fast transfer
- Maximum speed 32 km/h in field driving – for efficient work
The three-point mount which is suspended on the main frame via a pivot cylinder arranged transversely at the bottom features fully automatic pivoting to the left and right. All the connection points between the vehicle and the attachment are always in a straight line of traction thanks to the fully pivoting frame, even in diagonal steer mode. In this way, the material can optimally ab- sorb the strong forces during tillage - for perfect durability of the components.
A loading or unloading system is integrated as standard for slurry injectors. By pressing a button on the terminal of the attachment, the driver can either pressurise the attachment in dry conditions or relieve pressure in wet conditions.
Unique for self-propelled machines:
- Three-point mount category IV – for large attachments
- Full-tiltable three-point mount – for maximum stability
- Straight-acting forces – for stress-free use and thus the long lifetime of all assemblies
- BUCHER BHR control hydraulics – for individual settings
- 5 adouble acting control units; time and quantity adjustable – for absolute flexibility
- Load-Sensing und Power-Beyond – to ensure optimum oil supply
- Standard loading and unloading – for slurry injection into stationary stock
- Three-point mount freewheel over the terminal easy to adjust – for lowest wear
- Integrated into the central lubrication system – for maintenance free work
- Top link in category 3/4 or 4/4 selectable – for different attachments
The illumination concept of the Terra Variant turns night into day. This also ensures optimal visibility during night-time work. The operating range of the machine is illuminated up to 100% by max. 31 LED headlights. This guarantees maximum safety during suctioning or when monitoring the attachment – especially at night.
More light, more safety:
- Perfect lighting of the work area – for your safety
- Max. 31 LED headlights with up to 3,400 lm – for optimum illumination on the field and road
- Standard 4 x 1,950 lm powerful LED low-beam and high-beam headlines, including daytime running light rings – for road driving comfort
After all, the operator is our most important man:
- Perfectly clear vision – for your safety on the field and road
- Operator oriented controls – for ergonomic working
- Powerful climate control and tinted thermal insulation glass – for a cool head
- Hydrodynamic cabin suspension – for optimum driving comfort
- Excellent sound insulation with only 63 db volume – for operating comfort
- Spacious layout with storage – for personal freedom
- Grammer active seat: Specially built for HOLMER – because you are the focus of our developments
HOLMER SmartDrive is the intuitive operating concept for HOLMER machines. The combination of touch terminal, joystick, jog dial and BHR control unit ensures that every desired function is quickly and easily accessible. Freely programmable keys and shortcuts ensure comfortable working – because the driver is our most important man.
Networking through interfaces
With the HOLMER ISOBUS solution, body functions or task controllers including job management are clearly presented on a separate ISOBUS terminal. The signal socket enables the operation of additional devices such as catch crop shakers. Via a speed and hoist signal, it is thus possible to integrate these devices into the normal workflow.
The operator in focus:
- Intuitive operation – for easy and safe operation
- HOLMER EasyTouch 12.1-inch touch terminal – all information at a glance
- Ergonomic multi-function arm rest with jog-dial and joystick – for comfortable vehicle operation
- Orientation of all controls to the operator – since the operator and machine are one unit
- Vehicle diagnostics – for speedy assistance
