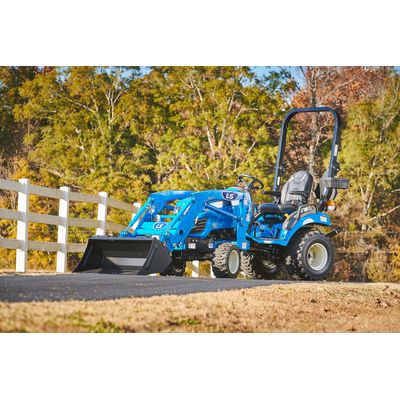

LS - Model MT125 - Sub-Compact Tractors
Loader Lift Capacity: 966 lbs. Hitch Lift: 966 lbs. Engine Horsepower: 24.7 hp. PTO Horsepower: 17.2 hp. 4WD (Front Wheel Mechanical Assist) – The MT125-24.7HP Sub-Compact Tractor features 4WD so you can get all your heavy duty pulling with no scuff. Go from 2WD to a 4WD with a simple move of a lever. Dual Pedal, 2 Range HST – Our MT125 model features the highly preferred dual pedal. Easier and more comfortable than rocker pedals and smoother switch.
Most popular related searches
- Independent PTO – Easiest PTO to operate that can be turned on or off with a switch.
- PTO Selector Switch – Allows you to select the rear-PTO, mid-PTO or both.
- Standard Mid PTO – 2000 RPM Mid PTO for optional 60” mid-mount mower or 50” front mount snow blower.
- Standard Hydrostatic Power Steering – Ditch the mechanical link—introducing hydrostatic power steering for ultimate flexibility, parts costs, and assemble-ability. This feature makes turning easier, improves control and reduces fatigue.
- Standard Foldable Props – Introducing foldable ROPS for storage allowance in low clearance buildings or sheds.
- 3-Point Hitch – Category 1 with a hitch lift capacity of 966 lbs. is smooth and responsive.
- Ergonomically Designed 3-Point Hitch – Category 1 with a hitch lift capacity of 966 lbs. is smooth and responsive.
- Ergonomically Designed 3-Point Hitch Controls – Easily accessible for maximum comfort and convenience with hydraulic position control.
- Easily Adjust Mowing Height – Adjusting the cutting height for the available 60″ mid-mount mower is as easy as turning a dial.
- Toolbox – Convenient storage keeps tools handy.
- Yanmar Tier 4 Engine and Easy Open Hood – Tier 4 engine that provides reliable power and performance. Includes an Easy Open Hood for quick accessibility for easy maintenance.
- Modern Ergonomic Design – This small chassis compact is ergonomically designed and stylish.
- Comfortable High-Back Seat – Supportive and comfortable seat reduces fatigue and reverses position for backhoe use.
Engine
- Type: 3-cylinder, Indirect-injection, Water-cooled
- Model (Tier 4): Yanmar 3TNV80F
- Engine HP (Gross: 24.7
- PTO HP: 17.2
- Rated Speed (RPM): 3,000
- Displacement (cu. in): 77.3
- Fuel Tank Capacity (gal): 6.6
- Alternator (V-A): 12V – 40
Drive Train
- Transmission Type: Hydrostatic Drive
- No. of Speed: 2 Ranges
- Brakes: Wet, Multi-disc
- Steering: Hydrostatic Power Steering
PTO
- Type: Independent
- Mid PTO: Standard (2500 rpm)
- Rear PTO: Standard (540 rpm)
Hydraulic System
- Control System: Position
- Implement pump (gpm): 4.6
- Steering pump (gpm): 2.1
- Total flow (gpm): 6.7
- Category, 3 pt hitch: CAT I
- Hitch Lift capacity, lbs (Hitch end): 970 (728 @ 24”)
Dimension
- Overall length (Frame to Link, in.): 97
- Overall width with tires (in.): 47
- Wheelbase (in.): 56
- Height to top of ROPS (in.): 87
Tire Size
- Tire Size Industrial Front/Rear: 18×18.5 – 10/26 x 12.0 – 12
- Tire Size Versa Turf Front/Rear:: 18×18.5 – 10/26 x 12.0 – 12
Weight
- Total weight without ballast (lbs.): 1,444
