AquaCheck
AquaCheck - Model SDI-12 & RS-485 - Sub-Surface Probe with Modbus
FromAquaCheck

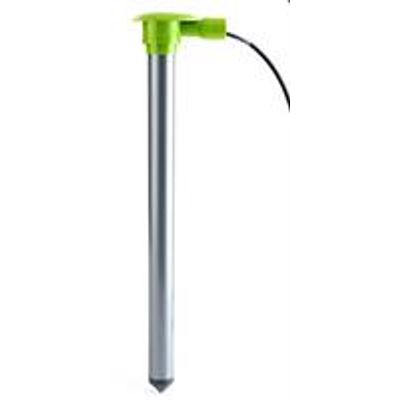

Application: annual crops, orchards, pastures, nurseries, greenhouses and turf (gholf, football, cricket and other). The AquaCheck Sub-Surface probe is a capacitance-based soil moisture and soil temperature monitoring device offering up to 15 sensors per probe. The Sub-Surface probe requires an external logger or remote transmission unit and external power supply.
Most popular related searches
soil moisture and temperature
soil moisture and temperature sensor
soil moisture probe
soil moisture sensor
capacitance-based soil moisture monitoring
soil moisture monitoring system
orchard nursery
soil probe
soil moisture monitoring
greenhouse nursery
General Specifications:
- A capacitance based continuous logging probe.
- Probe lengths from 200mm to 1600mm (refer to the link below for the various options available).
- Up to 15 soil moisture and soil temperature sensors depending on the probe configuration.
- Shaft diameter: 32mm.
- Compliancy: CE, FCC certified.
- Communication Interface options:
- SDI-12 (serial data interface, 1200bd)
- MODBUS, 2400bd
Technical Specifications:
- Supplied with a 6m 3-core 0,5mm thick cable.
- Voltage input: 4-14V.
- Power requirement: 10uA (0,01mA) during idle; 20mA for 2 seconds during measurement.
- Sensor spacing: every 100mm or 200mm (refer to the link below for the various options available).
- Sensor resolution: Approximately 13 bits.
- Temperature sensor: 0 to 51 oC, steps of 0.2 Degrees.
