IFF - Model XB1-S -Submersible Probe for Measuring Water Salinity At Fish Farms

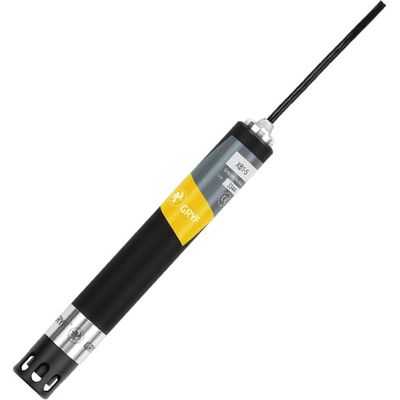

Effective and easy measurement at fish farms. The probe consists of a stainless-steel head with PVC sheath, a body with integrated electronics and a durable cable. The XB1-S probe measures the current between electrodes and converts it to specific electric conductivity values. The specific conductivity value shows how much dissolved salt is in the solution.
Most popular related searches
Measuring water salinity is an important water quality parameter. Measurements obtained using the XB1-S probe mean that the optimum concentration of salt can be maintained in the water depending on the species of fish being farmed. The probe is also suitable for highly-polluted and highly-conductive water due to the four-electrode system.
- Electrodes manufactured from highly-durable carbon composite
- 02Protection of electrodes against growth of biological encrustation
- 03Also suitable for use in polluted solutions
- 04Minimum operating costs
- 05Highly durable sheath
- Power supply: external source 18 ÷ 35V DC/ 30 mA
- Temperature measuring range: -20 ÷ 120 °C
- Temperature measurement accuracy: ± 0,2 °C; ± 1dig.
- Conductivity measuring range:
- 0,00 ÷ 20,00 (30,00) μS/cm
- 0,0 ÷ 200,0 (300,0) μS/cm
- 0 ÷ 2000 (3000) μS/cm
- 0,00 ÷ 20,00 (30,00) mS/cm
- 0,0 ÷ 200,0 (300,0; 500,0) mS/cm
- Conductivity measuring accuracy: ± 0,5 %; ± 1dig.
- Temperature compensation: automatic -5 ÷ 110 °C
- Temperature compensation constant: 0 ÷ 3 % / K, according to EN 27 888
- Reference temperature: 25 °C
- Concentration measurement range: 0 ÷ 300 g/l or 0 ÷ 30 % (up to 500 mS/cm), 5 ranges
- Salinity measurement range: 0 ÷ 70 g/l; 2 ranges
- Operating temperature range: 0 ÷ 50 °C
- Storage temperature range: -20 ÷ 70 °C
- Protection rating: IP 68
- Dimensions: 270 x 36 mm
- Dimensions (box): 320 x 200 x 75 mm
- Material: stainless steel 1,4404; PVC-U; PUR (cable)
