India Agrovision Implements Pvt. Ltd.

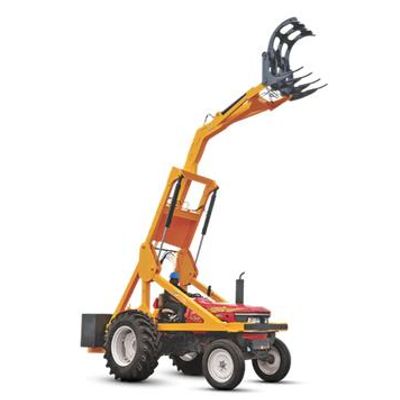

Agrovision - Model A-FSCL - Sugar Cane Loader
Ideal for sugar industry. It can be modified to be used for wooden logs, bagasse & ash handling & loading and unloading purposes. It is capable of loading up to 5 meter height . It can load 20 to 25 M.T. per hour*. Easy and quick attachment to tractor. Designed for toughest operations. Graber Capacity 1 Metric Ton . Maximum Load on Rear Wheels. Rear Weight Box.
Most popular related searches
post-harvesting system
post-harvest
sugar cane
tractor
post-harvest industry
log handling
harvesting system
tractor operation
tractor attachment
- Horsepower Required 45 - 75 HP
- Working Widths 1120 mm
- Hitch Types CAT-II
- GRABBER 1000 x 1000 x 1000 m
- MAIN BOOM 130 x 130 mm Square
- BOOM LENGTH 4200 mm
- BOOM WIDTH 1120 mm
- DUMP HEIGHT 5000 mm
- HYDRAULIC PUMP Rotary Pump - 54.4 Ltr./Sec.
- WEIGHT BOX Rear Side
- NO. OF HYDRAULIC CYLINDER 3
- APPROX. WEIGHT 1700 Kg.
- REQUIRED TRACTOR 45 - 75 HP
