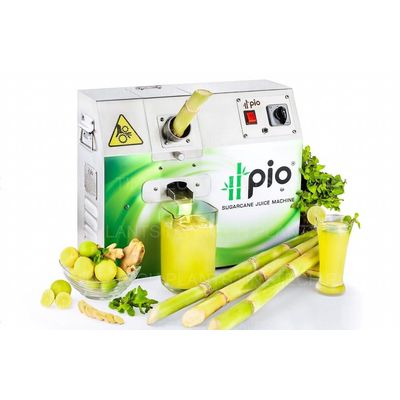

Tinytech - Sugarcane Juice Machine
Crushes 120 Kg sugarcane in 1 Hour giving 300 + Glasses of juice each of 200 ml. Juice is extracted completely in single crushing. Second crushing not required. Very compact, can be moved from one place to another easily. Very efficient, sturdy and noiseless. Very simple and easy to operate, even a child can easily operate it. Runs on single phase, so can be used anywhere. (Where there is electric connection). No open parts as in traditional sugarcane crushers. So, contamination from flies and dust is avoided. No maintenance required except regular cleaning. Very easy to clean. Just pour 2 glasses of water at sugarcane inlet and machine is cleaned.
- Machine Net weight: 41 kg
- Capacity:
- 120 kg / hour
- 300 Glasses / Hour
- Dimensions: 19" x 8" x 15"
- Electric motor: 0.5 HP,1 phase
- Full body & contact parts: Stainless Steel 304
- 3 Solid Rollers Material: Food-grade SS 304
- Power Consumption: Very economical USD 1 for 5000 glasses
- Load Bearing: Heavy Duty Cylindrical
- Reduction Gear box: Helical (3 stage)
- Sugarcane cutter
- Scrub for cleaning Sugarcane Sticks
- Brush for Cleaning Sugarcane Rollers
- 2 Strainers (Small & Big) to filter Sugarcane Juice
There are 2 types of cleaning this machine.
Semi cleaning:
To clean machine is extremely easy & takes only 10 seconds. Just pour 2 glass of water at sugarcane inlet & machine is cleaned.
Full cleaning:
Open knob (Anticlockwise) below the inlet, open cover, so you can see 3 rollers. Start machine (Reverse) & apply special given brush on rotating rollers & pour some water. Keep hands away. Then stop machine. Close top cover. Thus machine can be fully cleaned.
