Dymax - Model SG-200 -Super-Flow Handheld Sprayer
Dymax SG-200 Super-Flow Handheld Sprayer is designed for masking and coating applications where a significantly higher flow rate is required. The systems are ideal for dispensing fluids with viscosities between 5,000 cP and 80,000 cP and provide a flow rate that is 5-10 times higher than the Dymax SG-100 spray guns. Flow rates of 2.5 – 20 oz per minute are achievable, maximizing productivity for high-volume and large-part masking and coating applications. The SG-200 utilizes a normally closed, stainless steel needle valve to control fluid flow and a dual-acting air cylinder to provide immediate start/stop functionality. The systems’ dual-port atomizing nozzle design ensures symmetrical delivery of materials across a wide range of viscosities.
- Masking of turbines or other metal surfaces before surface treatments
- Masking medical implants before finishing
- Coating large parts with grease or other lubrication before assembly
- Spraying solvents for cleaning part surfaces

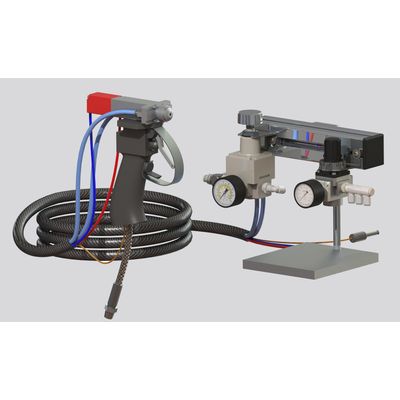

- Hand-held SG-200 spray gun with needle valve and controlling air regulators
- Air filter/regulator – 0-100 psi (0-6.9 bar)
- Model 345 controller for remote switching or automated use
- Spray gun stand
- Air Line Kit – 1/4 in (6.3 mm) OD tubing with fitting on one end
- Selected reservoir for fluid package used with airline kit /14 in (6.3 mm) OD tubing
- Fluid line kit – 6 ft of black 3/8 in (9.5 mm) OD tubing
- Fluid line kits – 6 ft of black 1/4 in: (6.3 mm) OD tubing and 3/8 in – 1/4 in (9.5 mm – 6.3 mm) stem fitting inserts
- Air pressure regulator – includes three pressure gauges
- 0-30 psi (0-2 bar) for very low- to medium-viscosity materials
- 0-60 psi (0-4.1 bar) for medium-viscosity materials
- Hand-held SG-200 spray gun with needle valve and controlling air regulators
- Air filter/regulator – 0-100 psi (0-6.9 bar)
- Model 345 controller for remote switching or automated use
- Spray gun stand
- Fluid line kit – 6 ft braided SS hose, 3/8 in NPT swivel
- 11:1 positive displacement ram-pump, 5-Gal taper or straight pail
- In-line, downstream material regulator
- Air precision regulator – includes three pressure gauges:
- 0-30 psi (0-2 bar) for very low- to medium-viscosity materials
- 0-80 psi (0-4.1 bar) for high-viscosity materials
- Configurations for low- and high-viscosity applications
- Compatible with light-curable conformal coatings and masking materials
- High-quality, light-blocking stainless or polyethylene fluid tubing for maximum flow rate
- High-quality, precision air regulators supplied for precise fluid control and air atomization
- Handheld and machine-mount configuration flexibility
- Air filter regulator includes an integrated shutoff valve and pressure exhaust to quickly and safely depressurize the system, eliminating the need for the operator to open and close the regulator
- Easy-to-open, swing-down toggles on the bottle and pail reservoirs
- High-viscosity supply capabilities with optional 11:1 ratio positive-displacement ram pump
Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.
Property: Specifications
- Viscosity range:
- Low: <5,000 cP
- High: 5,000 – 80,000 cP
- Flow rate: 2.5-20 oz per minute
