Super - Model B - Logger Forestry Trailers
From Forestry Trailers

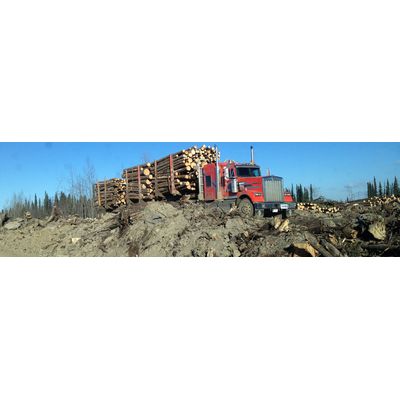

Renowned in the logging industry, Doepker loggers will put more money in your pocket than any other logger trailer on market for several reasons: tare weight, strength and design, reliability and resale value. A simple yet sophisticated design allows maximum payload and road life ensuring our trailers are ready to work before you are. We offer many bunk and stake configurations and a large list of options to cater to your haul. Visit your local dealer to view and discuss all of the great and numerous Doepker advantages and options on this trailer.
-
Most popular related searches
Specification
STANDARD FEATURES:
- Length 30' Lead; 27' Rear
- Tare Weight Approx 20200 - 23500 Lbs - Dependant on Bunk Option
- GVWR Lead 35000 Kg; Rear 35000 Kg
- Landing Gear Lead Trailer - Jost Magnum 2 Speed Sealed Unit
- Optional - Holland 2 Speed Landing Gear
- Rear Trailer - Extendable Dollie Legs
- King Pin Lead Set at 36' with 1/4' Coupler Plate
- Optional: Sliding King Pin on Front of Lead with 40' King Pin Slide from 30' to 70'
- Rear Set at 14' with 1/4' Coupler Plate
- Main Rails High Tensile Steel Flange and Web with Dimensions Subject to Lengths and Ratings
- 8 1/2' - Wide Bunks and Stakes
- 3 Tier Package 6 Bunks (4 Lead, 2 Rear) - 4' x 8' x 250 Wall Tube c/w 3 Bar Reversible Winches & 12 - 3' Long Taper QT400 1/4' x 3/8' for 16' Logs; 13'6' Overall
- Optional: 6 Bunks (4 Lead, 2 Rear) - Bolt-on One Piece Bunk & Stake Assembly - No Winches. 13'6' Overall (Only Available with Piggyback Option)
- Optional: Extra Tier Package to Carry Extra Tier of 16' Logs on Front of Rear Trailer in One Piece Bunk Design c/w 2 - 7' Pedestal Risers
- Optional: Support Bunks - 3 - 4' x 6' Tube Support Beam
- Optional: Folding Stake Retraction System
- Optional: 5' Pedestal Riser on Front Bunk of Rear to Haul 20' Logs
- 8 1/2' - Bunks and Stakes
- 6 Tier Package 12 Bunks (8 Lead, 4 Rear) - 4' x 8' x 250 Wall Tube c/w 3 Bar Reversible Winches & 24 - 3' Long Taper QT400 1/4' x 3/8' for 8' Logs; 13'6' Overall
- 13' Pedestal Riser on 4th Bunk on Lead Trailer
- Optional: 12 - 3' Long QT400 1/4 x 3/8 & 12 - 3' Long QT400 1/4 x 1/4' - 13'6' Overall Height
- Optional: Support Bunks - 3 - 4' x 6' Tube Support Beam
- Optional: 5' Pedestal Riser on Back Bunk of Lead to Haul 20' Logs
- Optional: 5' Pedestal Riser on Front Bunk of Rear to Haul 20' Logs
- Optional: Push Bumper c/w Pockets for Headache Rack at Back (Available With or Without Mesh Headache Rack)
- 9 1/2' - Wide Bunks and Stakes
- 3 Tier Package Alberta Spec HD Bunks - 6 (4 Lead, 2 Rear) 4' x 8' x 375 Wall Tube c/w 3 Bar Reversible Winches For 4' Stakes with 12 - 4' Long Taper QT400 1/4' x 1/4' - 13' 6' O/A Height for 16' Logs
- Optional: Alberta Spec HD Bunks - 6 (4 Lead, 2 Rear) 4' x 8' x 375 Wall Tube c/w 3 Bar Reversible Winches for 4' Stakes with 12 - 4' HD Long Taper QT400 1/4' x 1/4' - 15' 8' O/A Height for 20' Logs & Up (Stakes will Fold at Approx 13'6' Overall Height)
- Optional: Highway Bunks - 6 (4 Lead, 2 Rear) - 4' x 8' x 250 Wall Tube, No Winches, & 12 - 3' Long Taper QT400 Stakes for 16' Logs; 13' 6' O/A Height c/w Clearance Lights on Front Bunk Facing Ahead and Rear Bunk Facing on Lead & Rear Trailers
- Optional: Highway Bunks - 6 (4 Lead, 2 Rear) - Bolt-on One Piece Bunk & Stake Assembly - No Winches 13' 6' O/A Height c/w Clearance Lights on All Bunks Facing Ahead & Back on Lead & Rear Trailers. (Option Only Available with Piggy-Back Option)
- Piggy Back Option Optional: Piggy-Back Option with All Stakes to Fold on Lead Trailer
- Optional: Piggy-Back Option with Front 2 Bunks with Straight Non-Folding Stakes and Back 2 Bunks with Stakes to be Folding (Not Available with One Piece Bunk Assembly)
- Optional: Piggy-Back Option for Doubling Rear Onto Lead for 4 Bunks c/w Hostler Valve (Includes Spring Loaded Folding Stakes on Rear Trailer)
- Lift Mollies Optional: Lift Mollie at Back of Lead
- Optional: Lift Mollie at Front of Rear
- Air System Aluminum Air Tanks
- Inline Air Filtration System Built into Glad hands
- Air Gauge Box with Window
- Optional: 2 Quick Couplers at Front of Lead Trailer for Tractor Readout of Both Lead & Rear Trailers
- Tires Michelin or BF Goodrich
- Rims 22.5 or 24.5: Various Steel and Aluminum Options
- Serial Plate(s) Canada
- Safety Certified Yes
PAINT AND FINISH:
- Blast Preparation Completely Steel Shot Blasted
- Special Coatings Pure Zinc on Complete Steel
- Primer PPG Epoxy Primer Inside and Out
- Top Coat PPG Urethane / Acrycote Systems - All Colours Available
- Paint Cure System Entire Trailer put in Heat Ovens for Optimal Paint Adhesion
- Safety Reflective Tape
- Optional: Reflective Tape Added to Stakes
SUSPENSION:
- System Hendrickson Intraax AAL 25K LDA - 9' air ride with cam tube enclosures, INTSUSP.16094 with cast hub and drum for aluminum wheels
- Chain Axle Slings on All Axles
- Optional: Hendrickson HT250US.3 - 9' Air Ride 25000 Lb Capacity with Cam Tube Enclosures and Brake Pots Rotated Front and Up
- Optional: Truckweight Wireless Scale System
- Wheel Seals Stemco Guardian
- Brakes 16 1/2' X 7' Extended Life
- AntiLock Braking
- Meritor Wabco 2S2M on Lead, 2S1M on Rear
- Optional: 4S2M on Lead
- Optional: 2S2M or 4S2M on Rear
- Axle Spread Lead - 60' Tridem, Rear - 51' Tandem, 77 1/2' Track Width
- Auto Slack Adjusters Gunite
- Spring Brake Pots 30/30 TSE Omnibrake
- Optional: TSE Ultra-Life
- 5th Wheel Holland Lower 5th Wheel Plate on Rear Trailer
- Optional: Jost Lower 5th Wheel Plate on Rear Trailer
- Wheel End
- Cast Hub and Drum
- Optional: Duralight Hub and Centrifuse Drum Combinations
- Optional: Hubodometer - Metric or Imperial
LIGHTING:
- Wiring Harness Severe Duty Sealed Harness System
- Custom Designed by Trucklite for our Light Packages
- Lighting Trucklite LED as per CMVSS with Side Signal
PROTECTIVE FEATURES:
- Mudflaps Rear Doepker Mudflaps
- Optional: Mudflaps in Front of Brake Pots on Front Axle
