Swintool - 3 Point Hitch Lift Arm Balls
Tractor three point hitch is also called 3 point linkage in UK, it used to attach the implements to an agricultural or compactor tractor. In 1928 year, Harry Ferguson design it, today 90% of tractor has the similar 3 point hitch dimensions diagram geometry as the industrial standards. Three point linkage system of tractor including top link assembly, lift link arm, lower link arm and check chain stabilizer link. The lifting arm is also be designed and controlled by the hydraulic system. There are five category o, 1, 2, 3, 4 point hitch lift capacity types, to choose lift arm/top link/lower arm link pin sizes by tractor power.
Material of tractor turnbuckle:
Seamless cold drawn tubes of grade L 235 or L 355 steel as in DIN EN 10224, in China Q235A, Q345B steel.
Screw threads of turnbuckle:
- The threads of turnbuckles shall be metric coarse pitch threads as in DIN ISO 965-2, produced to tolerance 6H.
- Turnbuckle with Right-hand thread and Left-hand thread, as RH and LH thread.
Surface finish of turnbuckle:
- DIN EN ISO 4042 shall apply with regard to electroplating.
Turnbuckle Connection components:
- Customized forged clevis fork links,top link ends, eye blot, hooks etc.
- Tractor Top link cat 1 2 3 size
- Adjustable top link for tractor
- Heavy duty cat 2 top link
- 3 point hitch top link adjustment
- Tractor top link pin Tractor top link end
- Ratcheting top link / Ratcheting adjustable top link
- 3 point ratchet jack
- Hydraulic top link cat 4 Heavy duty hydraulic top link
- Lift arm leveling assembly Tractor lift arm
- 3 point hitch adjustable stabilizer
- 3 point hitch adjustable side link
- 3 point hitch extendable lower link arms
- 3 point hitch drawbar 3 point hitch lift arm balls
- tractor 3 point turnbuckle 3 point hitch turnbuckle
- tractor stabilizer turnbuckle

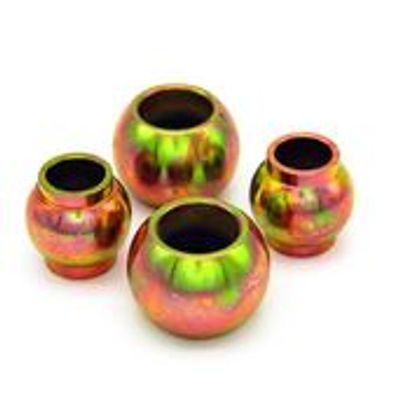

3 point hitch lift arm balls
Tractor 3 point lift arm ball is often replaced from housing, lower lift arm is very heavy duty load components, category II and III size types, is for new case, ford, kubota, massey ferguson, zetor etc.
Ford 4000 lift arm ball is made of 40Cr or C45 steel, with heat treatment HRC 40-45; surface is white Zinc or yellow zinc plated; 8N cat 2 to cat 3 bushing weld on end etc.
Swintool is China top manufacturers, suppliers, trader, exporter and dealers of tractor pins. We can help you to solve: replacing balls on lower lift arms of three pint hitch; 3 point hitch arm wore; changing 3 pt hitch ball etc.
We offer custom tractor 3-Pt hitch lift arm ball as your specification, competitive price, delivery on time, high quality.
