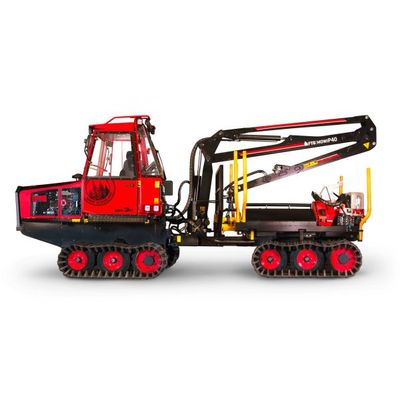

Terri - Model 3CT -Switchable Tracked Combi: Harvesting and Forwarding

Two for the price of one. With a Terri 3CT you get to experience the best of two forestry machines all in one package. Harvest in the morning and forward after lunch. In just 15 minutes you can reassemble the machine from felling to forwarding and get on with the next job. Sometimes that Småland ingenuity knows no bounds…

As with all our machines, Terri 3CT is also smooth to use on all types of ground. Thanks to the powerful midjoint lock, the machine also feels very stable, whatever the surface.

The machine is equipped with a strong crane from Mowi that has a range of 6.2 metres and a powerful unit from Log Max. Both designed and adapted for machines such as Terri. Powerful equipment that brings the machine to a class of its own, both when it comes to harvesting and forwarding.

When getting into the Terri 3CT, you will be struck by how spacious it is. And well equipped. Our cabins are made for long working days with technology and amenities adapted accordingly.

Engine

• Diesel engine:CAT 3.6
• Power:55.4 kW
• umber of cylinders:4
• Torque:424 Nm/1 200 rpm
• Diesel tank volume:100 l

Crane

• Crane:Mowi
• Model:P40
• Lifting torque:37 kNm
• Slewing torque:12 kNm
• Slewing arc:360°
• Reach:6.2 m

Transmission

• Transmission:Fully hydraulic
• Max. steering angle:45°
• Gears:1, 2 & reverse
• Max. speed:11 km/h
• Track width:490 mm

Harvester head

• Harvester head:LogMax
• Model:LM 2000T
• Feed rate:3.1 / 4.0 m /sec
• Feed force:14,9 kN
• Number of feed wheels:2
• Max. opening:330 mm

Hydraulic system

• Hydraulic system:Danfoss
• Tank volume:120 l
• Pump capacity:115 cc

Chassis

• Service weight:7700 kg
• Length, standard:6600 - 7200 mm
• Width:1900 mm
• Highest height:2900 mm
• Ground clearance:400 mm
• Loading area:2.00 m²
• Loading capacity:max. 5 tons

Electrical system

• Electrical system:24 V
• Battery:2x12 V / 100 Ah
• Generator:100 A
