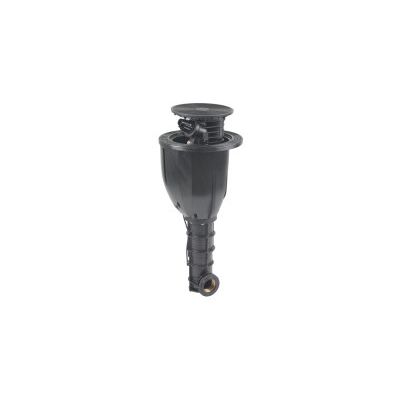

Mirage - Model M-180S -Synthetic Sports Field Sprinkler
The M-180 offers the longest radius 177 ft. (54,46 m), for cooling and cleaning synthetic sports fields or field hockey venues. Also useful for dust control and/or natural turf applications. Featuring precision German-engineered components allows this piston-driven sprinkler to apply water uniformly and quickly. It’s ideally suited for covering all or a portion of a sports field, on or behind the sidelines. Now offered in an electric valve-in-head model, its role is to lower initial installation costs as well as long-term operating costs with lower operating pressures and a slightly lower flow rate.
- Longest Radius of Mirage Series 111-177`
- Flow rate 113-302 GPM
- Operating Pressure 60-115 Psi
- Specify as Block Style or Electric valve-in-head Models
- Full or part-circle (part circle 30°-360°)
- 2" NPT or BSP Side-Inlet Sprinklers
Typical Applications
Synthetic and natural turf sports fields
Electric Valve-in-Head Model
Focused on lowering installation and long-term operating costs
Higher Pop-up Height
Distance, intermediate and short-range nozzles are now on a single plane to help clear higher turf pile heights. Three nozzles to choose from
Adjustable Rotation Speed
From 50 to 70 seconds for an 1800 arc pattern depending on delivery pressure.
Stainless Valve Boxes
Developed for synthetic turf applications for faster installation and access without having to disturb the surrounding field or sub-base
Underhill’s Total Solutions Kits
Mirage series sprinklers can be specified with either PVC or ductile iron swing joints, swing joint kits, stainless steel valve boxes and/or 2Wire control products as an integrated solution.
- Valve Type Electric Valve-in-Head 24 VAC actuated solenoid
- Arc Pattern Full circle/Part Circle (30°-360°)
- Radius Range 111-177` (34-54 m)
- Flow 113-302 GPM (23-65 m3/H)
- Recommending Operating Pressure 60-115 Psi (4,0 -8,0 bar)
- Maximum Operating Pressure 145 Psi (10,0 bar)
- Minimum Operating Pressure 58 Psi (4,0 bar)
- Nozzle Sizes 16, 20 & 24 mm
- Nozzle Trajectory 25°
- Inlet Size and Thread 2" NPT female side inlet
- Adjustable Speed Rotation 50-70 seconds for 180° arc pattern
- (Depending on delivery pressure)
- Overall Dimensions 27" tall (686 mm) × 13-3/4" diameter (350 mm)
- Pop-up Height 4.7" (120 mm)
- Lid Cover Dimensions 10.08" (256 mm)
