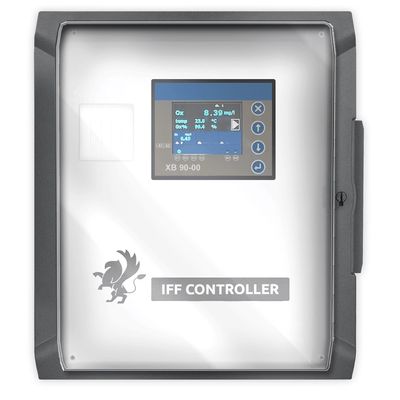

IFF Controller - System for Monitoring and Managing Processes On Fish Farms
Effective and simple management of fish farms: IFF Controllers are the backbone of the entire metering and regulation system on fish farms of any size. The unit collects data using smart probes, which can measure temperature, oxygenation, pH, salinity and ORP. At the customer’s request, the unit can also be fitted with a unimeter to make connection of any probe supplied by an external supplier possible.
In response to the acquired data, it can control up to 4 connected actuators using IFF SwitchBox switches. This system, with a TFT touch screen, guarantees protection against over-voltage and electric interference and has a back-up power supply. The IFF Controller unit is also used to display measured values, calibration of the connected probes and definition of rules for controlling the connected devices.
The measured data is made available to another device, the IFF Gate, which means that this data can be displayed nearly anywhere in the world.
- 4 sockets for intelligent probes
- Over-voltage and electric interference protection
- 4 actuators
- Secureoperation
- Probe calibration
- Number of measuring: 1 ÷ 4
- Connection of probes: shielded cable, total cable length must be max. 300 m
- Measurement interval: 0,5 s, depends on the probe type
- Power supply (depends on configuration): 19 ÷ 37 V DC/ 15 ÷ 500 mA, or 90 ÷ 250 V AC
- Switches (relays): 4 x 10 A, 250 V
- Communication (data output): MODBUS RTU
- Display: colour TFT, resistive touch panel
- Operating temperature range: -5 ÷ 50 °C
- Storage temperature range: -20 ÷ 70 °C
- Dimensions: 324 x 289 x 146 mm
- Dimensions (box): 520 x 450 x 220 mm
- Weight: cca 8 kg
