Tailgate/Bagging Doors

Remote Control of Single Station Functions:

• Gates
• Irrigation
• Hydraulic Equipment

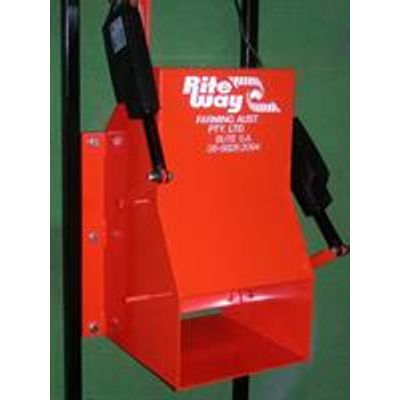

Remote Control Tailgate Seed-Super Door

Model SB1000-1 Open or Close Each Door

Control Unit Operates with 1, 2, 3, 4, 5 or 6 Functions:

• Model SB1000-1        1 or 2 functions
• Model SB1000-2         3 or 4 functions
• Model SB1000-3         5 or 6 functions

The Radio Controlled Actuator is a unique device for controlling up to 6 actuators from a distance of up to 30 metres with a hand-held radio transmitter. It provids a relatively low cost, simple, compact and highly secure method of controlling the position of virtually any actuator.

Design emphasis has been given to safety and security of operation by means of a unique software key & lock combination for each unit. This technique, together with the application of advanced micro-processor technology, provides safe and easy control unaffected by interference from other radio sources including other SB units.

Model SB1000

The Model SB1000 Radio Controlled Actuator is designed for a 6 actuator mobile bin system as used in the agricultural industry for the simultaneous application of seed and fertiliser.

The following configurations are available:

• 1 Transmitter + 1 Receiver + 2 Actuators.
• 1 Transmitter + 2 Receivers + 4 Actuators.
• 1 Transmitter + 3 Receivers + 6 Actuators.

Each Receiver is equipped to control 2 actuators.

The SB1000 is extremely rugged in construction and does not require any routine maintenance or mechanical adjustment other than to replace the transmitter battery from time to time.

Technical Data:

• Transmitter:
• Dimensions: 52mm W x 117mm L
• Battery: 2 x AA batteries
• Frequency: 433 MHz
• Password: User set
• Receiver:
• Dimensions: 170mm W x 120mm D x 55mm H
• Power supply: 12 volts DC
• Password: Factory set
• Relay Outputs: 4 off SPDT, 240Vac rating
