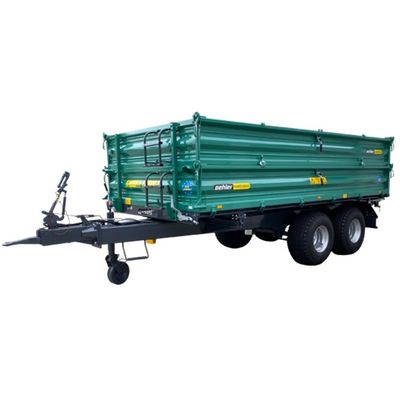

Oehler - Model OL TDK 80 -Tandem-Axle 3-Way Tipping Trailer

Standard equipment

• Torsion-resistant chassis of stable rectangular tube frame
• Perfectly tight structure: 2.5 mm wall thickness, sideboards with high-quality sideboard fasteners from Hestal & Bernhofer
• Steel side walls (side walls and rear wall) can be swung separately, central locking on 3 sides, skirting board, grain slide, tensioning ropes
• Conical bridge, screwed stanchions
• BPW axle suitable for 25/40 km/h
• Foldable support wheel
• 12 volt lighting system, rear power socket
• Complete vehicle (frame, platform, sideboards) cleaned in 9 immersion baths, degreased and then coated inside + outside with ACC and main paint baked at 180 degrees
• Precision ball tilt bearing with crossover safety fuse
• Oversized tilt cylinder, 4-stage, 1700 mm stroke, cardan bearing with hard-chrome plated piston rod and automatic stroke limitation

• Permitted total weight: 8 t
• Platform - inner dimension: 4500x2240(2180)x500 mm
• Basic tires: 13.0/75-16 TL 10 PR AW (135A8)
• Tare weight approx.: 2.480 kg
• Basic sideboard: 500 mm
• Platform height approx.: 1115 mm
• Floor platform: 5 mm continuous, unwelded
• Max axle load capacity: 11.000 kg
• Tipping cylinder stages: 4
• Cylinder stroke length: 1.700 mm
• Cylinder stages Ø mm: 75-90-105-120
• Max. operating pressure: 200 bar
• Oil quantity needed: 14,6 l
• Brake: Overrun reverse automatic flanged (BPW)
• Electrical system: 12 volt lighting system, rear power socket
• Additional: Wheel chocks
