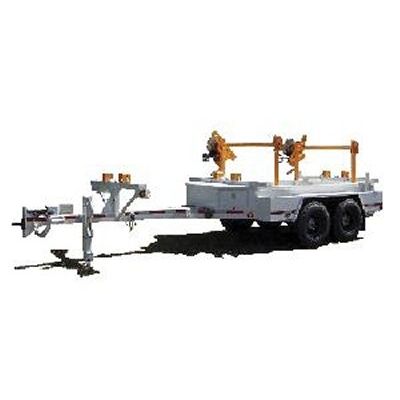

Model BP-1600-S - Tandem Axle Single Wheel Combination Trailer
Mud Flaps. 2 Chock Boxes. Dual Safety Chains w/Safety Latch Hooks. Safety Break-Away Kit w/Jell Cell Battery. 6-Way Or 7-Way Electrical Plug. 2 Stop-Turn-Tail Lights & License Light. Three Light Identification At Rear. 4 Red Clearance Lights At Rear w/Reflector Lenses. 2 Amber Clearance Lights At Front w/Reflector Lenses. All Lights Sealed Element, Gromment Mount. Operation, Service & Parts Manual.
Most popular related searches
- Air/Hydraulic Brakes
- Clamp On Pole Light
- Reel Racks
- Stabilizer Legs At Rear
- Wheel Chocks
- Tension Brake For Reel
- Special Paint
- Retriever For Cable
- Warner 6-Way Socket
- Gasoline Hydraulic Power Unit
- GVWR: 16,000 lbs.
- Unladen Weight: 3,800 lbs.
- Tires: (4) 1200 x 16.5-F
- Wheels: (4) 9.7 5 x 16.5
- Axles (Oil Lubricated): 3 1/2" Dia. Tube, (2) 8,000 lbs.
- Springs: Multi-Leaf, Slipper Type
- Brakes (Electric): 12 1/4" x 3 3/8"
- Overall Length (Retracted): 21`
- Overall Length (Extended): 31`
- Overall Width: 96"
- Frame: Steel Channel
- Floor: 3/16" Steel Diamond Plate
- Fenders: 1/8" Steel Diamond Plate
- Cargo Box: 67" x 120" x 15" Deep
- Tool Box (End Open): Front Of Bed
- Tie Downs: 6 D-Rings, 3 On Each Side of Bed
- Tail Gate: Fold-Down 2 Pockets For Reel Racks (Racks Not Included)
- Parts Bin (Outside Of Bed): (4) 2-Front & 2- Rear
- Pole Bolsters: 2-w/Binders, 1-Removeable At Rear
- Pole Bolsters: w/Binders, On Front Of Tongue, 48"
- Pole Chocks: (4) Chain Adjustable
- Hitch (2 5/16 Ball or Eye Adj.): 6 Position
- Tongue (Telescoping): Tubular Steel
- Tongue Jack: Swivel, 10,000 lbs.
- Electric Stretch Cable: Inside Tongue
- Paint: Enamel Safety Yellow
