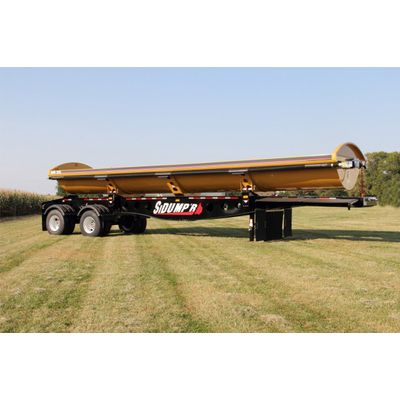

Sidumpr - Model SDR240-49 - SDR240-73 - SDR238-49 -Tandem Axle Trailer
Frame Length: SDR238-49 – 38’, SDR240-49 – 40′, SDR240-73 – 40′. Width: 102″.
Most popular related searches
- Height
- Tub Down 100″
- In Dump Position 129″
- Trailer Weight: 15,600 lbs
- Tub Length: 36′ Tub
- Tub Capacity
- Water level: 23 cu yds
- Heep/Strike-off: 32 cu yds
- Dump Angle: 42 degrees
- Kingpin: Standard: 18″
- Optional: 23″
- Landing Gear: Standard: Manual retracted with multiple height settings, 20″ clearance
- Optional: Crank Landing Gear
- Suspension: Standard: Recyo AR23 Air Ride
- Optional: Spring
- Axles: Reyco 25,000 lbs
- Optional: Lift
- Wheels: Standard: 11r 22.5 Steel
- Optional:
- 11r 22.5 Aluminum
- 11r 24.5 Steel
- 11r 24.5 Aluminum
- 385 Super Singles
- 425 Super Singles
- Other options available upon request
- Tires: 16 ply 18/32″ tread depth
- Mud Flaps: Ultra rubber spray suppressing with Sidump’r logo
- Hydraulics: 1″ steel lines surrounded by rubber garments.
- Cylinder: 3-stage single cylinder. As each stage extends out, the dump cycle becomes faster. More push and pull power than any 2-cylinder model. 2-year warranty.
- Tub: 1 piece rolled AR450 tub. No center divider. Haul anything without the distraction of trying to work around the tub divider.
- Lights: Grote LED 12 Volt rubber mount sealed lighting and harness system with 7 pole electrical socket.
- Fenders: Front: Fender belting
- Rear: Minimizer fenders
- Optional: Belting
- Pivot Joints: Composite bushing roller pin design requires no greasing.
- Read Push Block: Bolt on for ease of repair. Options include DOT bumper only, push block only or combination of both.
- Abs: Haldex 2S1M
- Safety: Red and white conspicuity markings & tub latching system meets D.O.T. secured load requirements at all times while traveling down the road!
- Colors: Yellow, black, white, grey, or custom colors. 2 year paint warranty.
- Tarp System: Areo 2 tarp system with mesh net and safety switch
- Options: See our Specialty & Options page.
