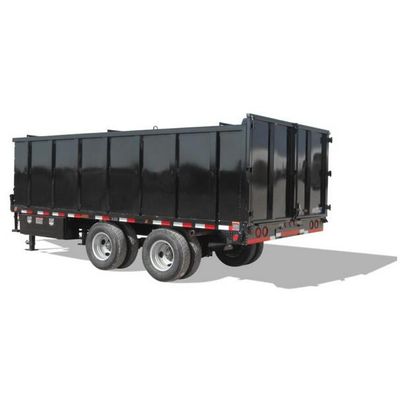

Load-Trail - Model PX - Tandem Dual Dump Trailer

Electric brake axles are forward-self-adjusting. Manual gravity-down valve included on all dual-acting hydraulic units.

Most popular related searches

G.V.W.R.: 22,000 lbs
G.A.W.R.: 10,000 lbs / Axle
TONGUE: 12” I-Beam
FRAME: 12” I-Beam
CROSSMEMBERS: 10″ I-Beam
BED FRAME: 2″ x 5″ Tubing
BED CROSSMEMBERS: 3″ Channel
AXLES: (2) 10,000 lb Dexter 2 Electric NEV-R-ADJUST Brake
SUSPENSION: Dexter Heavy-Duty Suspension System (HDSS)
COUPLER: 3″ Adjustable Pintle
JACK: (2) 10,000 lb Drop-Leg
WHEELS: 16” 8-Hole Wheels
TIRES: ST235/80 R16 LRE w/Spare
SIDES: 48″ High, 10 Gauge Removable
FLOOR: 10 Gauge Smooth Plate
STORAGE: Tongue-mount Toolbox (hyd. storage)
RAMPS: 96″ x 16″‘ Rear Slide-In Ramps
GATE: 2-Way Spreader Gate
PUMP: 12v Dual Acting Hydraulic Pump w/Manual Gravity Down Valve
CONTROLLER: 2-Button w/12′ Control Cable
BATTERY: 12v Battery w/5amp Trickle Charger
CYLINDER: 6″ x 29″ x 2-3/4″ Cylinder w/Scissor Hoist
STEP: 15″ MAX-Step
D-RINGS: (4) 3″ Weld-on D-rings
LIGHTS: LED Stop, Tail, & Clearance Lights
WIRING: 16 Ga. 5-Way Double-Insulated Wire Harness
PLUG: 7-way Cold Weather Cord
SAFETY CHAINS: (2) 3/8″ x 36″ Grade 70
PRETREATMENT: Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH: (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

Standard Features
