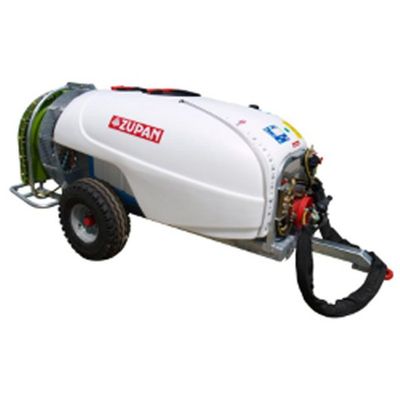

ZUPANModel STANDARD - Tank Volume Trailed Sprayer - 600, 800, 1000, 1500 AND 2000 L.

SHARE

Tank capacities 600, 800, 1000, 1500 and 2000 l Versions: PE - Polyethylene tank. without marking - Tank made of reinforced polyester. Recommendations for use:. Row width : from 2,0 - 5,0 m. Spraying height : up to 4,5 m. Recommended spraying area up to 25 ha. In various versions adaptable to all types of plantations.

Most popular related searches

Characteristics:

  • Larger ventilator capacity for spraying higher trees
  • Lateral sucking of air to reduce noise levels
  • Stator wings for symmetric output of the air
  • Two clean water tanks for thinning the rest of the sprinkling-broth, washing the system and for hand washing
  • Single-handed remote control for guidance from the tractor`s cabin

Standard equipment:

  • Tank made of polyethylene or reinforced poliester
  • Pump with 115 or 145 l/min, 50 bar
  • Clean water tank for hand washing
  • Clean water tank for the system washing
  • Remote control unit By Matic
  • Ventilator 700 mm, up to 50.000 m3/h
  • Stator wings for symmetric output of the air
  • Double, turn able sprayer nozzles, with non-drop-valve
  • 6 nozzles on each side
  • Two step gearbox with idle run
  • In width adjustable wheels
  • Standard  steering  tow  for  hook
  • Two hydraulic stirrer
  • High pressure filter
  • Hot dipped galvanized frame
  • Hydraulic dust mixer
