Tarimar - Tarimar Nipple with Cup

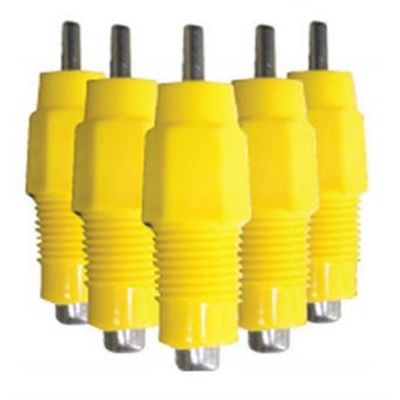

Nipple

Ensuring the supply of the system water in the PVC pipe, it is the most important part of the system. The bird causes the water to flow into its beak by pushing the stainless steel section at the end.

Nipple Socket
The socket part enabling the robust assembly of the nipple to the PVC pipe. This part is attached to the PVC pipe through the use of ultrasonic welding.

Nipple Cup
A single unit is assembled with each nipple. It ensures the interconnection of the carrier galvanised by and the PVC watering pipe with its monoblock S shape structure.

Regulator
Ensures water at the same pressure at each point on the watering line. Eliminates pressure differences in the watering line caused by sloping in the poultry house.

By-pass Regulator
In addition to the functions of a normal regulator, it features a bypass system that enables the regulator system to be bypassed during cleaning after a flock. This also enables the pressurised flushing of the pipes.

End Assembly
Mounted at the end of the watering line. Used to discharge the water in the line after flocks.

• Maximum Line Length 150 meters
• Watering PVC Pipe Diameter 26,7 mm
• Recommended Number of Birds Per Nipple 10 - 15 Broilers
• Nipple Interval 20 cm or  25 cm
• Nipple Watering Capacity 65 ml / minute
• Carrier Galvanised Pipe Diameter Ø 32 mm (3,2 cm)
• Carrier Galvanised Pipe Wall Thickness 1,00 mm
• Lifting System Carrier Roller Range 3 meters
• Main Rope Thickness 4 mm Stainless Steel
