Tavlit Plastic Ltd.

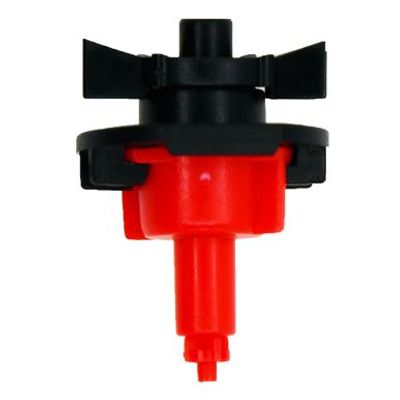

TavlitModel 861 -Large Wetting Diameter Sprinkler

SHARE
The product is designed for irrigation of mature trees with large root zone. Product can be used for low precipitation rate and high uniformity overlapping irrigation in greenhouses. Product can be used for upside down irrigation in greenhouses and nurseries in places where a lower angle of throw is required. Applicable for landscape, cooling and frost protection systems.


Most popular related searches
  • Wide range of nozzles to meet all applications: 35-160liters per hour (0.15-0.70gpm)
  • Nominal Flow Rate: at 2.0bar (29psi)
  • Working Pressure Maximum Range: 1-3bar (14.5-43.5psi)
  • Optimal Working Pressure Range: 1.4-2.2bar (20-32psi)
  • Large Wetting Diameter: 5.5-9.0m (18-30ft)
  • Recommended Overlapping Spacing In Wind Protected Areas:
    Upright position up to 6 x 6m (20 x 20ft)
    Inverted: Rectangular overlapping up to 5x5m (16 x 16ft)
    One row of emitters up to 6.0m (20ft) hot house width
    Two rows of emitters up to 12m (39ft) hot house width
  • 861 series can be supplied as PC (pressure compensated) emitter
